#include <compilerDependencies.h>
#include <pv/pvType.h>
#include <shareLib.h>

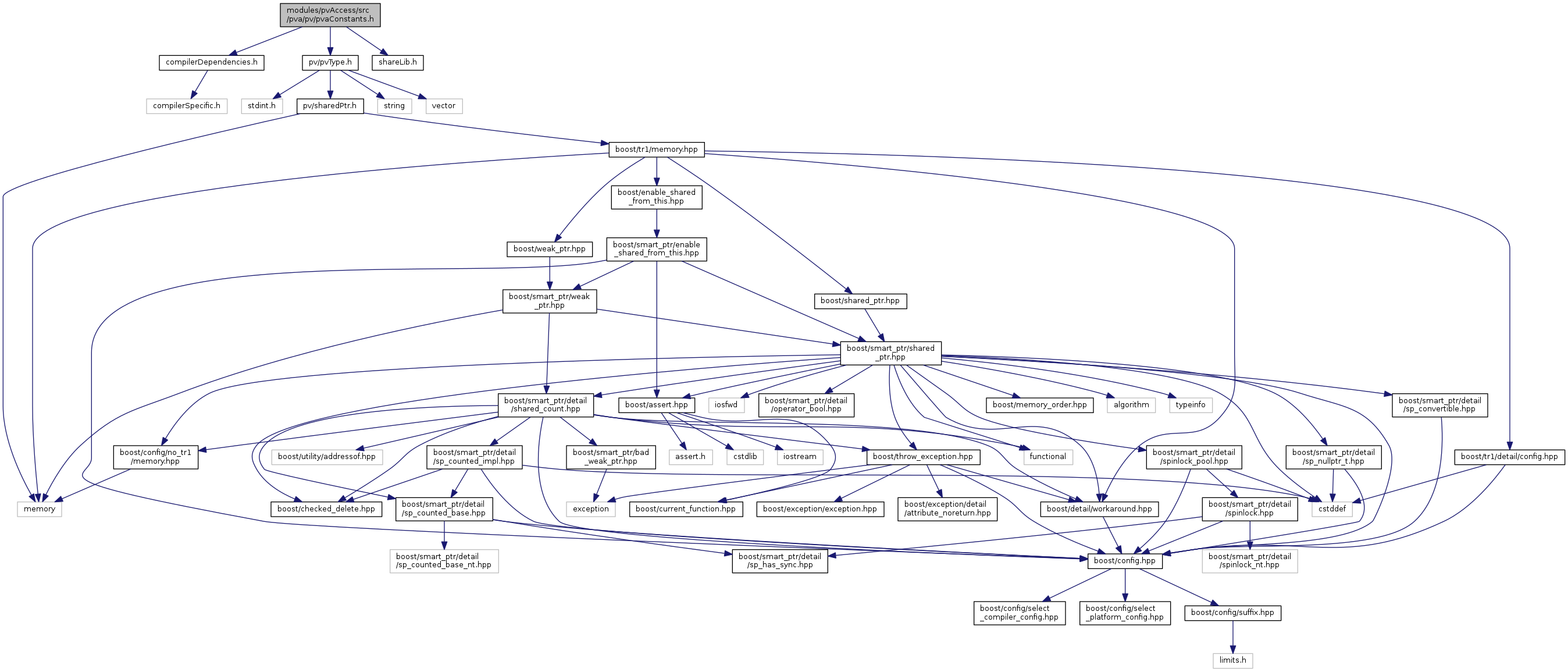

Include dependency graph for pvaConstants.h:

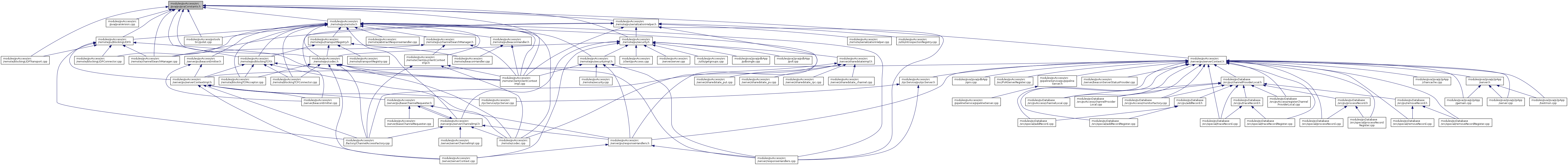

This graph shows which files directly or indirectly include this file:

Namespaces
	epics
	TODO only here because of the Lockable.

	epics::pvAccess
	Holds all PVA related.

Variables
const epics::pvData::int8	epics::pvAccess::PVA_MAGIC = static_cast<epics::pvData::int8>(0xCA)

const epics::pvData::int8	epics::pvAccess::PVA_SERVER_PROTOCOL_REVISION = 2

const epics::pvData::int8	epics::pvAccess::PVA_CLIENT_PROTOCOL_REVISION = 2

const epics::pvData::int8 PVA_PROTOCOL_REVISION	epics::pvAccess::EPICS_DEPRECATED = 1

const epics::pvData::int32	epics::pvAccess::PVA_SERVER_PORT = 5075

const epics::pvData::int32	epics::pvAccess::PVA_BROADCAST_PORT = 5076

const epics::pvData::int16	epics::pvAccess::PVA_MESSAGE_HEADER_SIZE = 8

const epics::pvData::int32	epics::pvAccess::MAX_UDP_UNFRAGMENTED_SEND = 1440

const epics::pvData::int32	epics::pvAccess::MAX_UDP_RECV = 65487

const epics::pvData::int32	epics::pvAccess::MAX_TCP_RECV = 1024*16

const epics::pvData::int32	epics::pvAccess::MAX_SEARCH_BATCH_COUNT = 0x7FFF

const epics::pvData::int16	epics::pvAccess::PVA_DEFAULT_PRIORITY = 0

const epics::pvData::uint32	epics::pvAccess::MAX_CHANNEL_NAME_LENGTH = 500

const epics::pvData::int16	epics::pvAccess::INVALID_DATA_TYPE = 0xFFFF

const epics::pvData::int32	epics::pvAccess::INVALID_IOID = 0

epicsShareExtern const std::string	epics::pvAccess::PVACCESS_DEFAULT_PROVIDER

epicsShareExtern const std::string	epics::pvAccess::PVACCESS_ALL_PROVIDERS

epicsShareExtern const std::string	epics::pvAccess::PVACCESS_DEBUG
