udpiiu.cpp File Reference

#include "envDefs.h"
#include "dbDefs.h"
#include "osiProcess.h"
#include "osiWireFormat.h"
#include "epicsAlgorithm.h"
#include "errlog.h"
#include "locationException.h"
#include "addrList.h"
#include "caerr.h"
#include "udpiiu.h"
#include "iocinf.h"
#include "inetAddrID.h"
#include "cac.h"
#include "disconnectGovernorTimer.h"

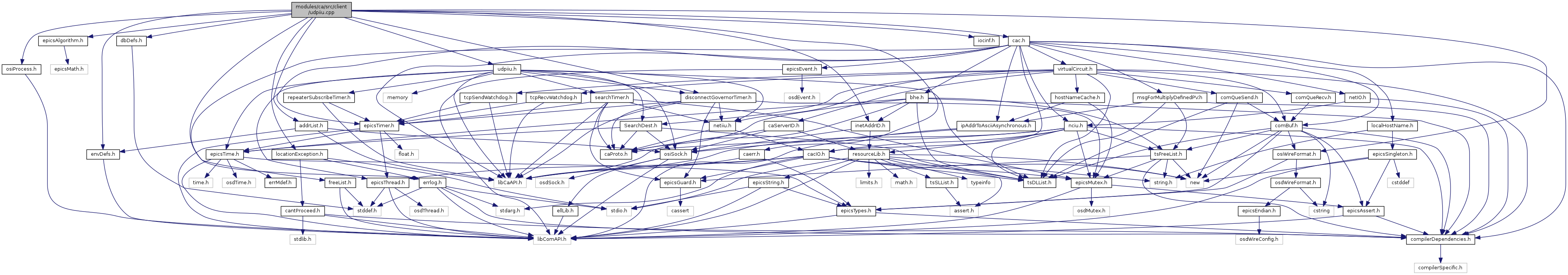

Include dependency graph for udpiiu.cpp:

Go to the source code of this file.

Macros
#define	epicsAssertAuthor   "Jeff Hill johill@lanl.gov"

Functions
void epicsStdCall	caRepeaterRegistrationMessage (SOCKET sock, unsigned repeaterPort, unsigned attemptNumber)
void epicsStdCall	caStartRepeaterIfNotInstalled (unsigned repeaterPort)

Macro Definition Documentation

#define epicsAssertAuthor   "Jeff Hill johill@lanl.gov"

Definition at line 25 of file udpiiu.cpp.

Function Documentation

void epicsStdCall caRepeaterRegistrationMessage	(	SOCKET	sock,
		unsigned	repeaterPort,
		unsigned	attemptNumber
	)

Definition at line 464 of file udpiiu.cpp.

{
    osiSockAddr saddr;
    caHdr msg;
    int status;
    int len;

    assert ( repeaterPort <= USHRT_MAX );
    unsigned short port = static_cast <unsigned short> ( repeaterPort );

    /*
     * In 3.13 beta 11 and before the CA repeater calls local_addr()
     * to determine a local address and does not allow registration
     * messages originating from other addresses. In these
     * releases local_addr() returned the address of the first enabled
     * interface found, and this address may or may not have been the loop
     * back address. Starting with 3.13 beta 12 local_addr() was
     * changed to always return the address of the first enabled
     * non-loopback interface because a valid non-loopback local
     * address is required in the beacon messages. Therefore, to
     * guarantee compatibility with past versions of the repeater
     * we alternate between the address returned by local_addr()
     * and the loopback address here.
     *
     * CA repeaters in R3.13 beta 12 and higher allow
     * either the loopback address or the address returned
     * by local address (the first non-loopback address found)
     */
    if ( attemptNumber & 1 ) {
        saddr = osiLocalAddr ( sock );
        if ( saddr.sa.sa_family != AF_INET ) {
            /*
             * use the loop back address to communicate with the CA repeater
             * if this os does not have interface query capabilities
             *
             * this will only work with 3.13 beta 12 CA repeaters or later
             */
            saddr.ia.sin_family = AF_INET;
            saddr.ia.sin_addr.s_addr = htonl ( INADDR_LOOPBACK );
            saddr.ia.sin_port = htons ( port );
        }
        else {
            saddr.ia.sin_port = htons ( port );
        }
    }
    else {
        saddr.ia.sin_family = AF_INET;
        saddr.ia.sin_addr.s_addr = htonl ( INADDR_LOOPBACK );
        saddr.ia.sin_port = htons ( port );
    }

    memset ( (char *) &msg, 0, sizeof (msg) );
    AlignedWireRef < epicsUInt16 > ( msg.m_cmmd ) = REPEATER_REGISTER;
    msg.m_available = saddr.ia.sin_addr.s_addr;

    /*
     * Intentionally sending a zero length message here
     * until most CA repeater daemons have been restarted
     * (and only then will they accept the above protocol)
     * (repeaters began accepting this protocol
     * starting with EPICS 3.12)
     */
#   if defined ( DOES_NOT_ACCEPT_ZERO_LENGTH_UDP )
        len = sizeof (msg);
#   else
        len = 0;
#   endif

    status = sendto ( sock, (char *) &msg, len, 0,
                      &saddr.sa, sizeof ( saddr ) );
    if ( status < 0 ) {
        int errnoCpy = SOCKERRNO;
        /*
         * Different OS return different codes when the repeater isnt running.
         * Its ok to supress these messages because I print another warning message
         * if we time out registerring with the repeater.
         *
         * Linux returns SOCK_ECONNREFUSED
         * Windows 2000 returns SOCK_ECONNRESET
         */
        if (    errnoCpy != SOCK_EINTR &&
                errnoCpy != SOCK_ECONNREFUSED &&
                errnoCpy != SOCK_ECONNRESET ) {
            char sockErrBuf[64];
            epicsSocketConvertErrnoToString (
                sockErrBuf, sizeof ( sockErrBuf ) );
            fprintf ( stderr, "error sending registration message to CA repeater daemon was \"%s\"\n",
                sockErrBuf );
        }
    }
}

void epicsStdCall caStartRepeaterIfNotInstalled

(

unsigned

repeaterPort

)

Definition at line 581 of file udpiiu.cpp.

{
    bool installed = false;
    int status;
    SOCKET tmpSock;
    union {
        struct sockaddr_in ia;
        struct sockaddr sa;
    } bd;

    if ( repeaterPort > 0xffff ) {
        fprintf ( stderr, "caStartRepeaterIfNotInstalled () : strange repeater port specified\n" );
        return;
    }

    tmpSock = epicsSocketCreate ( AF_INET, SOCK_DGRAM, IPPROTO_UDP );
    if ( tmpSock != INVALID_SOCKET ) {
        ca_uint16_t port = static_cast < ca_uint16_t > ( repeaterPort );
        memset ( (char *) &bd, 0, sizeof ( bd ) );
        bd.ia.sin_family = AF_INET;
        bd.ia.sin_addr.s_addr = htonl ( INADDR_ANY );
        bd.ia.sin_port = htons ( port );
        status = bind ( tmpSock, &bd.sa, sizeof ( bd ) );
        if ( status < 0 ) {
            if ( SOCKERRNO == SOCK_EADDRINUSE ) {
                installed = true;
            }
            else {
                fprintf ( stderr, "caStartRepeaterIfNotInstalled () : bind failed\n" );
            }
        }
    }

    /*
     * turn on reuse only after the test so that
     * this works on kernels that support multicast
     */
    epicsSocketEnableAddressReuseDuringTimeWaitState ( tmpSock );

    epicsSocketDestroy ( tmpSock );

    if ( ! installed ) {

        /*
         * This is not called if the repeater is known to be
         * already running. (in the event of a race condition
         * the 2nd repeater exits when unable to attach to the
         * repeater's port)
         */
        osiSpawnDetachedProcessReturn osptr =
            osiSpawnDetachedProcess ( "CA Repeater", "caRepeater" );
        if ( osptr == osiSpawnDetachedProcessNoSupport ) {
            epicsThreadId tid;

            tid = epicsThreadCreate ( "CAC-repeater", epicsThreadPriorityLow,
                    epicsThreadGetStackSize ( epicsThreadStackMedium ), caRepeaterThread, 0);
            if ( tid == 0 ) {
                fprintf ( stderr, "caStartRepeaterIfNotInstalled : unable to create CA repeater daemon thread\n" );
            }
        }
        else if ( osptr == osiSpawnDetachedProcessFail ) {
            fprintf ( stderr, "caStartRepeaterIfNotInstalled (): unable to start CA repeater daemon detached process\n" );
        }
    }
}
