baseNMIU Class Reference

#include "netIO.h"

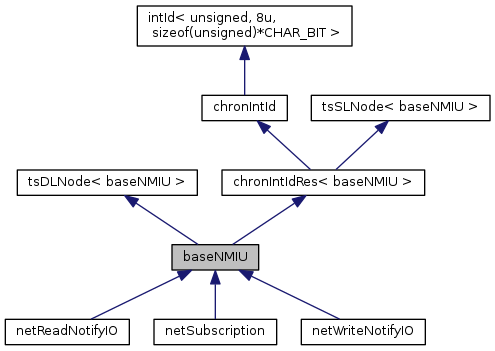

Inheritance diagram for baseNMIU:

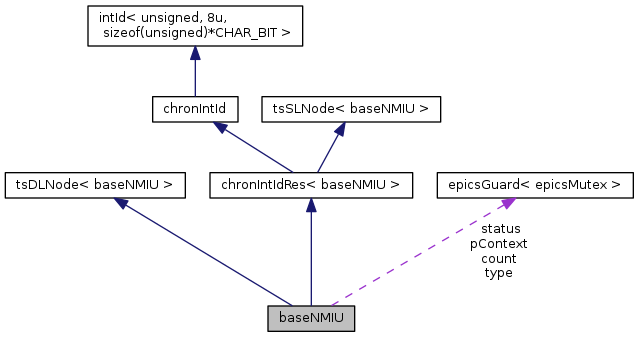

Collaboration diagram for baseNMIU:

Public Member Functions
virtual void	destroy (epicsGuard< epicsMutex > &, class cacRecycle &)=0
virtual void	completion (epicsGuard< epicsMutex > &, cacRecycle &)=0
virtual void	completion (epicsGuard< epicsMutex > &, cacRecycle &, unsigned type, arrayElementCount count, const void *pData)=0
virtual void	forceSubscriptionUpdate (epicsGuard< epicsMutex > &guard, nciu &chan)=0
virtual class netSubscription *	isSubscription ()=0
virtual void	show (unsigned level) const =0
virtual void	show (epicsGuard< epicsMutex > &, unsigned level) const =0
Public Member Functions inherited from tsDLNode< baseNMIU >
	tsDLNode ()
	tsDLNode (const tsDLNode< baseNMIU > &)
const tsDLNode< baseNMIU > &	operator= (const tsDLNode< baseNMIU > &)
Public Member Functions inherited from chronIntIdRes< baseNMIU >
	chronIntIdRes ()
Public Member Functions inherited from chronIntId
	chronIntId (const unsigned &idIn)
Public Member Functions inherited from intId< unsigned, 8u, sizeof(unsigned)*CHAR_BIT >
	intId (const unsigned &idIn)
bool	operator== (const intId &idIn) const
resTableIndex	hash () const
const unsigned	getId () const
Public Member Functions inherited from tsSLNode< baseNMIU >
	tsSLNode ()
tsSLNode< baseNMIU > &	operator= (const tsSLNode< baseNMIU > &)

Public Attributes
virtual void exception epicsGuard< epicsMutex > cacRecycle int	status
virtual void exception epicsGuard< epicsMutex > cacRecycle int const char *	pContext = 0
virtual void exception epicsGuard< epicsMutex > cacRecycle int const char unsigned	type
virtual void exception epicsGuard< epicsMutex > cacRecycle int const char unsigned arrayElementCount	count = 0

Protected Member Functions
NETIO_VIRTUAL_DESTRUCTOR	~baseNMIU ()

Additional Inherited Members
Protected Attributes inherited from intId< unsigned, 8u, sizeof(unsigned)*CHAR_BIT >
unsigned	id

Detailed Description

Definition at line 44 of file netIO.h.

Constructor & Destructor Documentation

baseNMIU::~baseNMIU ( )

protected

Definition at line 27 of file baseNMIU.cpp.

{
}

Member Function Documentation

virtual void baseNMIU::completion ( epicsGuard< epicsMutex > &  , cacRecycle &    )

pure virtual

virtual void baseNMIU::completion ( epicsGuard< epicsMutex > &  , cacRecycle &  , unsigned  type, arrayElementCount  count, const void *  pData  )

pure virtual

virtual void baseNMIU::destroy ( epicsGuard< epicsMutex > &  , class cacRecycle &    )

pure virtual

void baseNMIU::forceSubscriptionUpdate ( epicsGuard< epicsMutex > &  guard, nciu &  chan  )

pure virtual

Definition at line 31 of file baseNMIU.cpp.

{
}

virtual class netSubscription* baseNMIU::isSubscription ( )

pure virtual

virtual void baseNMIU::show ( unsigned  level ) const

pure virtual

Implemented in netWriteNotifyIO, netReadNotifyIO, and netSubscription.

virtual void baseNMIU::show ( epicsGuard< epicsMutex > &  , unsigned  level  ) const

pure virtual

Implemented in netWriteNotifyIO, netReadNotifyIO, and netSubscription.

Member Data Documentation

virtual void exception epicsGuard< epicsMutex > cacRecycle int const char unsigned arrayElementCount baseNMIU::count = 0

Definition at line 57 of file netIO.h.

void exception epicsGuard< epicsMutex > cacRecycle int const char * baseNMIU::pContext = 0

Definition at line 53 of file netIO.h.

void exception epicsGuard< epicsMutex > cacRecycle int baseNMIU::status

Definition at line 51 of file netIO.h.

virtual void exception epicsGuard< epicsMutex > cacRecycle int const char unsigned baseNMIU::type

Definition at line 54 of file netIO.h.

---

The documentation for this class was generated from the following files:

• modules/ca/src/client/netIO.h
• modules/ca/src/client/baseNMIU.cpp
