acctst.c File Reference

#include <stdio.h>
#include <stdlib.h>
#include <math.h>
#include <float.h>
#include <string.h>
#include "epicsAssert.h"
#include "epicsMutex.h"
#include "epicsEvent.h"
#include "epicsTime.h"
#include "dbDefs.h"
#include "envDefs.h"
#include "caDiagnostics.h"
#include "cadef.h"
#include "fdmgr.h"
#include "epicsExit.h"

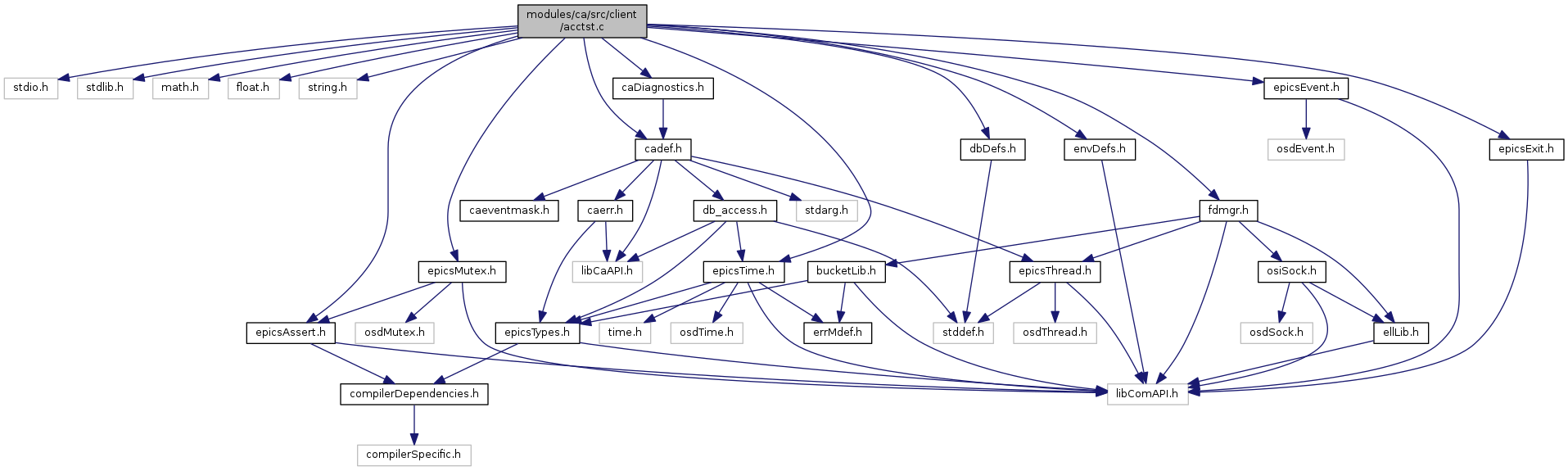

Include dependency graph for acctst.c:

Go to the source code of this file.

Classes
struct	appChan
struct	MultiSubscrDestroyNoLateCallbackEventData
struct	MultiSubscrDestroyNoLateCallbackTestData
struct	eventTest
struct	MultiThreadSubscrTest

Macros
#define	epicsAssertAuthor   "Jeff Hill johill@lanl.gov"
#define	verify(exp)
#define	multiSubscrDestroyNoLateCallbackEventCount   500

Typedefs
typedef struct appChan	appChan

Functions
void	showProgressBegin (const char *pTestName, unsigned interestLevel)
void	showProgressEnd (unsigned interestLevel)
void	showProgress (unsigned interestLevel)
void	nUpdatesTester (struct event_handler_args args)
void	monitorSubscriptionFirstUpdateTest (const char *pName, chid chan, unsigned interestLevel)
void	ioTesterGet (struct event_handler_args args)
void	ioTesterEvent (struct event_handler_args args)
void	verifyMonitorSubscriptionFlushIO (chid chan, unsigned interestLevel)
void	accessRightsStateChange (struct access_rights_handler_args args)
void	getCallbackStateChange (struct event_handler_args args)
void	connectionStateChange (struct connection_handler_args args)
void	subscriptionStateChange (struct event_handler_args args)
void	noopSubscriptionStateChange (struct event_handler_args args)
void	verifyConnectionHandlerConnect (appChan *pChans, unsigned chanCount, unsigned repetitionCount, unsigned interestLevel)
void	verifyBlockingConnect (appChan *pChans, unsigned chanCount, unsigned repetitionCount, unsigned interestLevel)
void	verifyClear (appChan *pChans, unsigned interestLevel)
void	grEnumTest (chid chan, unsigned interestLevel)
void	ctrlDoubleTest (chid chan, unsigned interestLevel)
void	verifyBlockInPendIO (chid chan, unsigned interestLevel)
void	floatTest (chid chan, dbr_float_t beginValue, dbr_float_t increment, dbr_float_t epsilon, unsigned iterations)
void	doubleTest (chid chan, dbr_double_t beginValue, dbr_double_t increment, dbr_double_t epsilon, unsigned iterations)
void	verifyAnalogIO (chid chan, int dataType, double min, double max, int minExp, int maxExp, double epsilon, unsigned interestLevel)
void	verifyLongIO (chid chan, unsigned interestLevel)
void	verifyShortIO (chid chan, unsigned interestLevel)
void	verifyHighThroughputRead (chid chan, unsigned interestLevel)
void	verifyHighThroughputWrite (chid chan, unsigned interestLevel)
void	verifyHighThroughputReadCallback (chid chan, unsigned interestLevel)
void	verifyHighThroughputWriteCallback (chid chan, unsigned interestLevel)
void	verifyBadString (chid chan, unsigned interestLevel)
void	multiple_sg_requests (chid chix, CA_SYNC_GID gid)
void	test_sync_groups (chid chan, unsigned interestLevel)
void	multiSubscriptionDeleteTest (chid chan, unsigned interestLevel)
void	singleSubscriptionDeleteTest (chid chan, unsigned interestLevel)
void	channelClearWithEventTrafficTest (const char *pName, unsigned interestLevel)
void	selfDeleteEvent (struct event_handler_args args)
void	eventClearTest (chid chan)
void	acctstExceptionNotify (struct exception_handler_args args)
void	arrayEventExceptionNotify (struct event_handler_args args)
void	exceptionTest (chid chan, unsigned interestLevel)
void	arrayReadNotify (struct event_handler_args args)
void	arrayWriteNotify (struct event_handler_args args)
void	arrayTest (chid chan, unsigned maxArrayBytes, unsigned interestLevel)
void	unequalServerBufferSizeTest (const char *pName, unsigned interestLevel)
void	pend_event_delay_test (dbr_double_t request)
void	caTaskExitTest (unsigned interestLevel)
void	verifyDataTypeMacros (void)
void	updateTestEvent (struct event_handler_args args)
dbr_float_t	monitorUpdateTestPattern (unsigned iter)
void	callbackClearsChannel (struct event_handler_args args)
void	clearChannelInGetCallbackTest (const char *pName, unsigned level)
void	clearChannelInPutCallbackTest (const char *pName, unsigned level)
void	clearChannelInSubscrCallbackTest (const char *pName, unsigned level)
void	monitorAddConnectionCallback (struct connection_handler_args args)
void	monitorAddConnectionCallbackTest (const char *pName, unsigned interestLevel)
void	monitorUpdateTest (chid chan, unsigned interestLevel)
void	verifyReasonableBeaconPeriod (chid chan, unsigned interestLevel)
void	verifyOldPend (unsigned interestLevel)
void	verifyTimeStamps (chid chan, unsigned interestLevel)
void	verifyChannelPriorities (const char *pName, unsigned interestLevel)
void	verifyTearDownWhenChannelConnected (const char *pName, enum ca_preemptive_callback_select select, unsigned interestLevel)
void	verifyImmediateTearDown (const char *pName, enum ca_preemptive_callback_select select, unsigned interestLevel)
void	eventClearAndMultipleMonitorTest (chid chan, unsigned interestLevel)
void	fdcb (void *parg)
void	fdRegCB (void *parg, int fd, int opened)
void	testMultithreadSubscrConnHandler (struct connection_handler_args args)
void	testMultithreadSubscr (void *pParm)
void	verifyMultithreadSubscr (const char *pName, unsigned interestLevel)
void	fdManagerVerify (const char *pName, unsigned interestLevel)
void	verifyConnectWithDisconnectedChannels (const char *pName, unsigned interestLevel)
void	verifyClearChannelOnDisconnectCallback (struct connection_handler_args args)
void	noopExceptionCallback (struct exception_handler_args args)
void	verifyDisconnect (const char *pName, unsigned interestLevel)
void	verifyName (const char *pName, unsigned interestLevel)
void	verifyContextRundownFlush (const char *pName, unsigned interestLevel)
void	verifyContextRundownChanStillExist (const char *pName, unsigned interestLevel)
int	acctst (const char *pName, unsigned interestLevel, unsigned channelCount, unsigned repetitionCount, enum ca_preemptive_callback_select select)

Variables
unsigned	subscriptionUpdateCount
unsigned	accessUpdateCount
unsigned	connectionUpdateCount
unsigned	getCallbackCount
evid	globalEventID
unsigned	acctstExceptionCount = 0u

Macro Definition Documentation

#define epicsAssertAuthor   "Jeff Hill johill@lanl.gov"

Definition at line 32 of file acctst.c.

#define multiSubscrDestroyNoLateCallbackEventCount   500

Definition at line 1332 of file acctst.c.

#define verify

(

exp

)

Value:

((exp) ? (void)0 : \
    epicsAssert(__FILE__, __LINE__, #exp, epicsAssertAuthor))

Definition at line 65 of file acctst.c.

Typedef Documentation

typedef struct appChan appChan

Function Documentation

void accessRightsStateChange

(

struct access_rights_handler_args

args

)

Definition at line 302 of file acctst.c.

{
    appChan *pChan = (appChan *) ca_puser ( args.chid );

    verify ( pChan->channel == args.chid );
    verify ( args.ar.read_access == ca_read_access ( args.chid ) );
    verify ( args.ar.write_access == ca_write_access ( args.chid ) );
    accessUpdateCount++;
    pChan->accessUpdateCount++;
}

int acctst	(	const char *	pName,
		unsigned	interestLevel,
		unsigned	channelCount,
		unsigned	repetitionCount,
		enum ca_preemptive_callback_select	select
	)

Definition at line 3398 of file acctst.c.

{
    chid chan;
    int status;
    unsigned i;
    appChan *pChans;
    unsigned connections;
    unsigned maxArrayBytes = 10000000;

    printf ( "CA Client V%s, channel name \"%s\", timeout %g\n",
        ca_version (), pName, timeoutToPendIO );
    if ( select == ca_enable_preemptive_callback ) {
        printf ( "Preemptive call back is enabled.\n" );
    }

    {
        char tmpString[32];
        sprintf ( tmpString, "%u", maxArrayBytes );
        epicsEnvSet ( "EPICS_CA_MAX_ARRAY_BYTES", tmpString );
    }

    /*
     * this test creates, and then destroys, a private CA context
     */
    multiSubscrDestroyNoLateCallbackTest ( pName, interestLevel );

    status = ca_context_create ( select );
    SEVCHK ( status, NULL );

    verifyDisconnect ( pName, interestLevel );
    verifyImmediateTearDown ( pName, select, interestLevel );
    verifyTearDownWhenChannelConnected ( pName, select, interestLevel );

    verifyDataTypeMacros ();

    connections = ca_get_ioc_connection_count ();
    verify ( connections == 0u );
    unequalServerBufferSizeTest ( pName, interestLevel );
    clearChannelInGetCallbackTest ( pName, interestLevel );
    clearChannelInPutCallbackTest ( pName, interestLevel );
    clearChannelInSubscrCallbackTest ( pName, interestLevel );
    monitorAddConnectionCallbackTest ( pName, interestLevel );

    showProgressBegin ( "connecting to test channel", interestLevel );
    status = ca_search ( pName, & chan );
    SEVCHK ( status, NULL );
    status = ca_pend_io ( timeoutToPendIO );
    SEVCHK ( status, NULL );
    showProgressEnd ( interestLevel );

    printf ( "native type was %s, native count was %lu\n",
        dbf_type_to_text ( ca_field_type ( chan ) ),
        ca_element_count ( chan ) );

    connections = ca_get_ioc_connection_count ();
    verify ( connections == 1u || connections == 0u );
    if ( connections == 0u ) {
        printf ( "testing with a local channel\n" );
    }

    verifyName ( pName, interestLevel );
    verifyConnectWithDisconnectedChannels ( pName, interestLevel );
    grEnumTest ( chan, interestLevel );
    test_sync_groups ( chan, interestLevel );
    verifyChannelPriorities ( pName, interestLevel );
    verifyTimeStamps ( chan, interestLevel );
    verifyOldPend ( interestLevel );
    exceptionTest ( chan, interestLevel );
    arrayTest ( chan, maxArrayBytes, interestLevel );
    verifyMonitorSubscriptionFlushIO ( chan, interestLevel );
    monitorSubscriptionFirstUpdateTest ( pName, chan, interestLevel );
    ctrlDoubleTest ( chan, interestLevel );
    verifyBlockInPendIO ( chan, interestLevel );
    verifyAnalogIO ( chan, DBR_FLOAT, FLT_MIN, FLT_MAX,
               FLT_MIN_EXP, FLT_MAX_EXP, FLT_EPSILON, interestLevel );
    verifyAnalogIO ( chan, DBR_DOUBLE, DBL_MIN, DBL_MAX,
               DBL_MIN_EXP, DBL_MAX_EXP, DBL_EPSILON, interestLevel );
    verifyLongIO ( chan, interestLevel );
    verifyShortIO ( chan, interestLevel );
    multiSubscriptionDeleteTest ( chan, interestLevel );
    singleSubscriptionDeleteTest ( chan, interestLevel );
    channelClearWithEventTrafficTest ( pName, interestLevel );
    eventClearAndMultipleMonitorTest ( chan, interestLevel );
    verifyHighThroughputRead ( chan, interestLevel );
    verifyHighThroughputWrite ( chan, interestLevel );
    verifyHighThroughputReadCallback ( chan, interestLevel );
    verifyHighThroughputWriteCallback ( chan, interestLevel );
    verifyBadString ( chan, interestLevel );
    verifyMultithreadSubscr ( pName, interestLevel );
    if ( select != ca_enable_preemptive_callback ) {
        fdManagerVerify ( pName, interestLevel );
    }

    /*
     * CA pend event delay accuracy test
     * (CA asssumes that search requests can be sent
     * at least every 25 mS on all supported os)
     */
    printf ( "\n" );
    pend_event_delay_test ( 1.0 );
    pend_event_delay_test ( 0.1 );
    pend_event_delay_test ( 0.25 );

    /* ca_channel_status ( 0 ); */
    ca_client_status ( 0 );
    /* ca_client_status ( 6u ); info about each channel */

    pChans = calloc ( channelCount, sizeof ( *pChans ) );
    verify ( pChans );

    for ( i = 0; i < channelCount; i++ ) {
        strncpy ( pChans[ i ].name, pName, sizeof ( pChans[ i ].name ) );
        pChans[ i ].name[ sizeof ( pChans[i].name ) - 1 ] = '\0';
    }

    verifyConnectionHandlerConnect ( pChans, channelCount, repetitionCount, interestLevel );
    verifyBlockingConnect ( pChans, channelCount, repetitionCount, interestLevel );
    verifyClear ( pChans, interestLevel );

    verifyReasonableBeaconPeriod ( chan, interestLevel );

    /*
     * Verify that we can do IO with the new types for ALH
     */
#if 0
    if ( ca_read_access (chan) && ca_write_access (chan) ) {
    {
        dbr_put_ackt_t acktIn = 1u;
        dbr_put_acks_t acksIn = 1u;
        struct dbr_stsack_string stsackOut;

        SEVCHK ( ca_put ( DBR_PUT_ACKT, chan, &acktIn ), NULL );
        SEVCHK ( ca_put ( DBR_PUT_ACKS, chan, &acksIn ), NULL );
        SEVCHK ( ca_get ( DBR_STSACK_STRING, chan, &stsackOut ), NULL );
        SEVCHK ( ca_pend_io ( timeoutToPendIO ), NULL );
    }
#endif

    /* test that ca_task_exit () works when there is still one channel remaining */
    /* status = ca_clear_channel ( chan ); */
    /* SEVCHK ( status, NULL ); */

    caTaskExitTest ( interestLevel );

    verifyContextRundownFlush ( pName, interestLevel );
    verifyContextRundownChanStillExist ( pName, interestLevel );

    free ( pChans );

    printf ( "\nTest Complete\n" );

    epicsExit ( EXIT_SUCCESS );

    return 0;
}

void acctstExceptionNotify

(

struct exception_handler_args

args

)

Definition at line 1731 of file acctst.c.

{
    acctstExceptionCount++;
}

void arrayEventExceptionNotify

(

struct event_handler_args

args

)

Definition at line 1737 of file acctst.c.

{
    if ( args.status == ECA_NORMAL ) {
        printf (
            "arrayEventExceptionNotify: expected "
            "exception but didnt receive one against \"%s\" \n",
            ca_name ( args.chid ) );
    }
    else {
        arrayEventExceptionNotifyComplete = 1;
    }
}

void arrayReadNotify

(

struct event_handler_args

args

)

Definition at line 1911 of file acctst.c.

{
    dbr_double_t *pWF = ( dbr_double_t * ) ( args.usr );
    dbr_double_t *pRF = ( dbr_double_t * ) ( args.dbr );
    int i;
    for ( i = 0; i < args.count; i++ ) {
        verify ( pWF[i] == pRF[i] );
    }
    arrayReadNotifyComplete = 1;
}

void arrayTest	(	chid	chan,
		unsigned	maxArrayBytes,
		unsigned	interestLevel
	)

Definition at line 1932 of file acctst.c.

{
    dbr_double_t *pRF, *pWF;
    unsigned i;
    int status;
    evid id;

    if ( ! ca_write_access ( chan ) ) {
        printf ( "skipping array test - no write access\n" );
        return;
    }

    showProgressBegin ( "arrayTest", interestLevel );

    pRF = (dbr_double_t *) calloc ( ca_element_count (chan), sizeof (*pRF) );
    verify ( pRF != NULL );

    pWF = (dbr_double_t *) calloc ( ca_element_count (chan), sizeof (*pWF) );
    verify ( pWF != NULL );

    /*
     * write some random numbers into the array
     */
    for ( i = 0; i < ca_element_count (chan); i++ ) {
        pWF[i] =  rand ();
        pRF[i] = - pWF[i];
    }
    status = ca_array_put ( DBR_DOUBLE, ca_element_count ( chan ),
                    chan, pWF );
    SEVCHK ( status, "array write request failed" );

    /*
     * read back the array
     */
    status = ca_array_get ( DBR_DOUBLE,  ca_element_count (chan),
                    chan, pRF );
    SEVCHK ( status, "array read request failed" );
    status = ca_pend_io ( timeoutToPendIO );
    SEVCHK ( status, "array read failed" );

    /*
     * verify read response matches values written
     */
    for ( i = 0; i < ca_element_count ( chan ); i++ ) {
        if ( pWF[i] != pRF[i] ) {
            printf ( "i=%u, pWF[i]=%f, pRF[i]=%f\n",
                i, pWF[i], pRF[i]);
        }
        verify ( pWF[i] == pRF[i] );
    }

    /*
     * read back the array as strings
     */
    {
        char *pRS;
        unsigned size = ca_element_count (chan) * MAX_STRING_SIZE;

        if ( size <= maxArrayBytes ) {

            pRS = malloc ( ca_element_count (chan) * MAX_STRING_SIZE );
            verify ( pRS );
            status = ca_array_get ( DBR_STRING,
                ca_element_count (chan), chan, pRS );
            SEVCHK  ( status, "array read request failed" );
            status = ca_pend_io ( timeoutToPendIO );
            SEVCHK ( status, "array read failed" );
            free ( pRS );
        }
        else {
            printf ( "skipping the fetch array in string data type test - does not fit\n" );
        }
    }

    /*
     * write some random numbers into the array
     */
    for ( i = 0; i < ca_element_count (chan); i++ ) {
        pWF[i] =  rand ();
        pRF[i] = - pWF[i];
    }
    status = ca_array_put_callback ( DBR_DOUBLE, ca_element_count (chan),
                    chan, pWF, arrayWriteNotify, 0 );
    SEVCHK ( status, "array write notify request failed" );
    status = ca_array_get_callback ( DBR_DOUBLE, ca_element_count (chan),
                    chan, arrayReadNotify, pWF );
    SEVCHK  ( status, "array read notify request failed" );
    ca_flush_io ();
    while ( ! arrayWriteNotifyComplete || ! arrayReadNotifyComplete ) {
        epicsThreadSleep ( 0.1 );
        ca_poll (); /* emulate typical GUI */
    }

    /*
     * write some random numbers into the array
     */
    for ( i = 0; i < ca_element_count (chan); i++ ) {
        pWF[i] =  rand ();
        pRF[i] = - pWF[i];
    }
    arrayReadNotifyComplete = 0;
    status = ca_array_put ( DBR_DOUBLE, ca_element_count ( chan ),
                    chan, pWF );
    SEVCHK ( status, "array write notify request failed" );
    status = ca_add_array_event ( DBR_DOUBLE, ca_element_count ( chan ),
                    chan, arrayReadNotify, pWF, 0.0, 0.0, 0.0, &id );
    SEVCHK ( status, "array subscription request failed" );
    ca_flush_io ();
    while ( ! arrayReadNotifyComplete ) {
        epicsThreadSleep ( 0.1 );
        ca_poll (); /* emulate typical GUI */
    }
    status = ca_clear_event ( id );
    SEVCHK ( status, "clear event request failed" );

    /*
     * a get request should fail or fill with zeros
     * when the array size is too large
     */
    {
        acctstExceptionCount = 0u;
        status = ca_add_exception_event ( acctstExceptionNotify, 0 );
        SEVCHK ( status, "exception notify install failed" );
        status = ca_array_get ( DBR_DOUBLE,
            ca_element_count (chan)+1, chan, pRF );
        if ( status == ECA_NORMAL ) {
            ca_poll ();
            while ( acctstExceptionCount < 1u ) {
                printf ( "N" );
                fflush ( stdout );
                epicsThreadSleep ( 0.1 );
                ca_poll (); /* emulate typical GUI */
            }
        }
        else {
            verify ( status == ECA_BADCOUNT );
        }
        status = ca_add_exception_event ( 0, 0 );
        SEVCHK ( status, "exception notify install failed" );
    }

    free ( pRF );
    free ( pWF );

    showProgressEnd ( interestLevel );
}

void arrayWriteNotify

(

struct event_handler_args

args

)

Definition at line 1921 of file acctst.c.

{
    if ( args.status == ECA_NORMAL ) {
        arrayWriteNotifyComplete = 1;
    }
    else {
       printf ( "arrayWriteNotify: update failed for \"%s\" because \"%s\"",
            ca_name ( args.chid ), ca_message ( args.status ) );
    }
}

void callbackClearsChannel

(

struct event_handler_args

args

)

Definition at line 2237 of file acctst.c.

{
    int status;
    status = ca_clear_channel ( args.chid );
    SEVCHK ( status, "clearChannelInXxxxCallbackTest clear channel" );
}

void caTaskExitTest

(

unsigned

interestLevel

)

Definition at line 2175 of file acctst.c.

{
    int status;

    showProgressBegin ( "caTaskExitTest", interestLevel );

    status = ca_task_exit ();
    SEVCHK ( status, NULL );

    showProgressEnd ( interestLevel );
}

void channelClearWithEventTrafficTest	(	const char *	pName,
		unsigned	interestLevel
	)

Definition at line 1623 of file acctst.c.

{
    unsigned count = 0u;
    evid sid;
    dbr_float_t temp, getResp;
    unsigned i;

    showProgressBegin ( "channelClearWithEventTrafficTest", interestLevel );

    for ( i=0; i < 1000; i++ ) {
        chid chan;

        int status = ca_create_channel ( pName, 0, 0,
            CA_PRIORITY_DEFAULT, &chan );
        status = ca_pend_io ( timeoutToPendIO );
        SEVCHK ( status, "channelClearWithEventTrafficTest: channel connect failed" );
        verify ( status == ECA_NORMAL );

        count = 0u;
        SEVCHK ( ca_add_event ( DBR_GR_FLOAT, chan, noopSubscriptionStateChange,
            &count, &sid ) , NULL );

        /*
         * force the subscription request to complete
         */
        SEVCHK ( ca_get ( DBR_FLOAT, chan, &getResp ), NULL );
        SEVCHK ( ca_pend_io ( timeoutToPendIO ), NULL );

        /*
         * attempt to generate heavy event traffic before initiating
         * the channel delete
         *
         * try to interrupt the recv thread while it is processing
         * incoming subscription updates
         */
        if ( ca_write_access (chan) ) {
            unsigned j = 0;
            while ( j < i ) {
                temp = (float) j++;
                SEVCHK ( ca_put (DBR_FLOAT, chan, &temp), NULL);
            }
            ca_flush_io ();
            epicsThreadSleep ( 0.001 );
        }

        SEVCHK ( ca_clear_channel ( chan ), NULL );
    }

    showProgressEnd ( interestLevel );
}

void clearChannelInGetCallbackTest	(	const char *	pName,
		unsigned	level
	)

Definition at line 2244 of file acctst.c.

{
    unsigned i;
    chid chan;
    int status;

    showProgressBegin ( "clearChannelInGetCallbackTest", level );

    for ( i = 0; ca_get_ioc_connection_count () > 0 ; i++ ) {
        ca_pend_event ( 0.1 );
        verify ( i < 100 );
    }

    status = ca_create_channel ( pName, 0, 0, 0, & chan );
    SEVCHK ( status, "clearChannelInGetCallbackTest create channel" );

    status = ca_pend_io ( timeoutToPendIO );
    SEVCHK ( status, "clearChannelInGetCallbackTest connect channel" );

    status = ca_get_callback ( DBR_DOUBLE, chan, callbackClearsChannel, 0 );
    SEVCHK ( status, "clearChannelInGetCallbackTest get callback" );

    for ( i = 0; ca_get_ioc_connection_count () > 0 ; i++ ) {
        ca_pend_event ( 0.1 );
        verify ( i < 100 );
    }

    showProgressEnd ( level );
}

void clearChannelInPutCallbackTest	(	const char *	pName,
		unsigned	level
	)

Definition at line 2274 of file acctst.c.

{
    unsigned i;
    const dbr_double_t value = 1.1;
    chid chan;
    int status;

    showProgressBegin ( "clearChannelInPutCallbackTest", level );

    for ( i = 0; ca_get_ioc_connection_count () > 0 ; i++ ) {
        ca_pend_event ( 0.1 );
        verify ( i < 100 );
    }

    status = ca_create_channel ( pName, 0, 0, 0, & chan );
    SEVCHK ( status, "clearChannelInPutCallbackTest create channel" );

    status = ca_pend_io ( timeoutToPendIO );
    SEVCHK ( status, "clearChannelInPutCallbackTest connect channel" );

    status = ca_put_callback ( DBR_DOUBLE, chan, & value,
                        callbackClearsChannel, 0 );
    SEVCHK ( status, "clearChannelInPutCallbackTest get callback" );

    for ( i = 0; ca_get_ioc_connection_count () > 0 ; i++ ) {
        ca_pend_event ( 0.1 );
        verify ( i < 100 );
    }

    showProgressEnd ( level );
}

void clearChannelInSubscrCallbackTest	(	const char *	pName,
		unsigned	level
	)

Definition at line 2306 of file acctst.c.

{
    unsigned i;
    chid chan;
    int status;

    showProgressBegin ( "clearChannelInSubscrCallbackTest", level );

    for ( i = 0; ca_get_ioc_connection_count () > 0 ; i++ ) {
        ca_pend_event ( 0.1 );
        verify ( i < 100 );
    }

    status = ca_create_channel ( pName, 0, 0, 0, & chan );
    SEVCHK ( status, "clearChannelInSubscrCallbackTest create channel" );

    status = ca_pend_io ( timeoutToPendIO );
    SEVCHK ( status, "clearChannelInSubscrCallbackTest connect channel" );

    status = ca_create_subscription ( DBR_DOUBLE, 1, chan,
        DBE_VALUE, callbackClearsChannel, 0, 0 );
    SEVCHK ( status, "clearChannelInSubscrCallbackTest subscribe" );

    for ( i = 0; ca_get_ioc_connection_count () > 0 ; i++ ) {
        ca_pend_event ( 0.1 );
        verify ( i < 100 );
    }

    showProgressEnd ( level );
}

void connectionStateChange

(

struct connection_handler_args

args

)

Definition at line 329 of file acctst.c.

{
    int status;

    appChan *pChan = (appChan *) ca_puser ( args.chid );

    verify ( pChan->channel == args.chid );

    if ( args.op == CA_OP_CONN_UP ) {
        if ( pChan->accessRightsHandlerInstalled ) {
            verify ( pChan->accessUpdateCount > 0u );
        }
        verify ( ! pChan->connected );
        pChan->connected = 1;
        status = ca_get_callback ( DBR_STS_STRING, args.chid, getCallbackStateChange, pChan );
        SEVCHK (status, 0);
    }
    else if ( args.op == CA_OP_CONN_DOWN ) {
        verify ( pChan->connected );
        pChan->connected = 0u;
        verify ( ! ca_read_access ( args.chid ) );
        verify ( ! ca_write_access ( args.chid ) );
    }
    else {
        verify ( 0 );
    }
    pChan->connectionUpdateCount++;
    connectionUpdateCount++;
}

void ctrlDoubleTest	(	chid	chan,
		unsigned	interestLevel
	)

Definition at line 751 of file acctst.c.

{
    struct dbr_ctrl_double *pCtrlDbl;
    dbr_double_t *pDbl;
    unsigned nElem = ca_element_count(chan);
    double slice = 3.14159 / nElem;
    size_t size;
    int status;
    unsigned i;


    if (!ca_write_access(chan)) {
        printf ("skipped ctrl dbl test - no write access\n");
        return;
    }

    if (dbr_value_class[ca_field_type(chan)]!=dbr_class_float) {
        printf ("skipped ctrl dbl test - not an analog type\n");
        return;
    }

    showProgressBegin ( "ctrlDoubleTest", interestLevel );

    size = sizeof (*pDbl)*ca_element_count(chan);
    pDbl = malloc (size);
    verify (pDbl!=NULL);

    /*
     * initialize the array
     */
    for (i=0; i<nElem; i++) {
        pDbl[i] = sin (i*slice);
    }

    /*
     * write the array to the PV
     */
    status = ca_array_put (DBR_DOUBLE,
                    ca_element_count(chan),
                    chan, pDbl);
    SEVCHK (status, "ctrlDoubleTest, ca_array_put");

    size = dbr_size_n(DBR_CTRL_DOUBLE, ca_element_count(chan));
    pCtrlDbl = (struct dbr_ctrl_double *) malloc (size);
    verify (pCtrlDbl!=NULL);

    /*
     * read the array from the PV
     */
    status = ca_array_get (DBR_CTRL_DOUBLE,
                    ca_element_count(chan),
                    chan, pCtrlDbl);
    SEVCHK (status, "ctrlDoubleTest, ca_array_get");
    status = ca_pend_io ( timeoutToPendIO );
    verify (status==ECA_NORMAL);

    /*
     * verify the result
     */
    for (i=0; i<nElem; i++) {
        double diff = pDbl[i] - sin (i*slice);
        verify (fabs(diff) < DBL_EPSILON*4);
    }

    free (pCtrlDbl);
    free (pDbl);
    showProgressEnd ( interestLevel );
}

void doubleTest	(	chid	chan,
		dbr_double_t	beginValue,
		dbr_double_t	increment,
		dbr_double_t	epsilon,
		unsigned	iterations
	)

Definition at line 901 of file acctst.c.

{
    unsigned i;
    dbr_double_t fval;
    dbr_double_t fretval;
    int status;

    fval = beginValue;
    for ( i = 0; i < iterations; i++ ) {
        fretval = DBL_MAX;
        status = ca_put ( DBR_DOUBLE, chan, &fval );
        SEVCHK ( status, NULL );
        status = ca_get ( DBR_DOUBLE, chan, &fretval );
        SEVCHK ( status, NULL );
        status = ca_pend_io ( timeoutToPendIO );
        SEVCHK ( status, NULL );
        if ( fabs ( fval - fretval ) > epsilon ) {
            printf ( "double test failed val written %f\n", fval );
            printf ( "double test failed val read %f\n", fretval );
            verify ( 0 );
        }
        fval += increment;
    }
}

void eventClearAndMultipleMonitorTest	(	chid	chan,
		unsigned	interestLevel
	)

Definition at line 2854 of file acctst.c.

{
    eventClearTest ( chan );
    monitorUpdateTest ( chan, interestLevel );
}

void eventClearTest

(

chid

chan

)

Definition at line 1685 of file acctst.c.

{
    int status;
    evid monix1, monix2, monix3;

    status = ca_add_event ( DBR_FLOAT, chan, noopSubscriptionStateChange,
                NULL, &monix1 );
    SEVCHK ( status, NULL );

    status = ca_clear_event ( monix1 );
    SEVCHK ( status, NULL );

    status = ca_add_event ( DBR_FLOAT, chan, noopSubscriptionStateChange,
                NULL, &monix1 );
    SEVCHK ( status, NULL );

    status = ca_add_event ( DBR_FLOAT, chan, noopSubscriptionStateChange,
                NULL, &monix2);
    SEVCHK (status, NULL);

    status = ca_clear_event ( monix2 );
    SEVCHK ( status, NULL);

    status = ca_add_event ( DBR_FLOAT, chan, noopSubscriptionStateChange,
                NULL, &monix2);
    SEVCHK ( status, NULL );

    status = ca_add_event ( DBR_FLOAT, chan, noopSubscriptionStateChange,
                NULL, &monix3);
    SEVCHK ( status, NULL );

    status = ca_clear_event ( monix2 );
    SEVCHK ( status, NULL);

    status = ca_clear_event ( monix1 );
    SEVCHK ( status, NULL);

    status = ca_clear_event ( monix3 );
    SEVCHK ( status, NULL);

    status = ca_add_event ( DBR_FLOAT, chan, selfDeleteEvent,
                0, &globalEventID );
    SEVCHK ( status, NULL );
}

void exceptionTest	(	chid	chan,
		unsigned	interestLevel
	)

Definition at line 1750 of file acctst.c.

{
    int status;

    showProgressBegin ( "exceptionTest", interestLevel );

    /*
     * force a get exception to occur
     */
    {
        dbr_put_ackt_t *pRS;

        acctstExceptionCount = 0u;
        status = ca_add_exception_event ( acctstExceptionNotify, 0 );
        SEVCHK ( status, "exception notify install failed" );

        pRS = malloc ( ca_element_count (chan) * sizeof (*pRS) );
        verify ( pRS );
        status = ca_array_get ( DBR_PUT_ACKT,
            ca_element_count (chan), chan, pRS );
        SEVCHK  ( status, "array read request failed" );
        ca_pend_io ( 1e-5 );
        epicsThreadSleep ( 0.1 );
        ca_poll ();
        while ( acctstExceptionCount < 1u ) {
            printf ( "G" );
            fflush ( stdout );
            epicsThreadSleep ( 0.1 );
            ca_poll (); /* emulate typical GUI */
        }
        status = ca_add_exception_event ( 0, 0 );
        SEVCHK ( status, "exception notify install failed" );
        free ( pRS );
    }

    /*
     * force a get call back exception to occur
     */
    {
        arrayEventExceptionNotifyComplete = 0u;
        status = ca_array_get_callback ( DBR_PUT_ACKT,
            ca_element_count (chan), chan, arrayEventExceptionNotify, 0 );
        if ( status != ECA_NORMAL ) {
            verify ( status == ECA_BADTYPE || status == ECA_GETFAIL );
            arrayEventExceptionNotifyComplete = 1;
        }
        ca_flush_io ();
        epicsThreadSleep ( 0.1 );
        ca_poll ();
        while ( ! arrayEventExceptionNotifyComplete ) {
            printf ( "GCB" );
            fflush ( stdout );
            epicsThreadSleep ( 0.1 );
            ca_poll (); /* emulate typical GUI */
        }
    }

    /*
     * force a subscription exception to occur
     */
    {
        evid id;

        arrayEventExceptionNotifyComplete = 0u;
        status = ca_add_array_event ( DBR_PUT_ACKT, ca_element_count ( chan ),
                        chan, arrayEventExceptionNotify, 0, 0.0, 0.0, 0.0, &id );
        if ( status != ECA_NORMAL ) {
            verify ( status == ECA_BADTYPE || status == ECA_GETFAIL );
            arrayEventExceptionNotifyComplete = 1;
        }
        ca_flush_io ();
        epicsThreadSleep ( 0.1 );
        ca_poll ();
        while ( ! arrayEventExceptionNotifyComplete ) {
            printf ( "S" );
            fflush ( stdout );
            epicsThreadSleep ( 0.1 );
            ca_poll (); /* emulate typical GUI */
        }
        status = ca_clear_event ( id );
        SEVCHK ( status, "subscription clear failed" );
    }

    /*
     * force a put exception to occur
     */
    {
        dbr_string_t * pWS;
        unsigned i;

        acctstExceptionCount = 0u;
        status = ca_add_exception_event ( acctstExceptionNotify, 0 );
        SEVCHK ( status, "exception notify install failed" );

        pWS = malloc ( ca_element_count (chan) * MAX_STRING_SIZE );
        verify ( pWS );
        for ( i = 0; i < ca_element_count (chan); i++ ) {
            strcpy ( pWS[i], "@#$%" );
        }
        status = ca_array_put ( DBR_STRING,
            ca_element_count (chan), chan, pWS );
        if ( status != ECA_NORMAL ) {
            verify ( status == ECA_BADTYPE || status == ECA_PUTFAIL );
            acctstExceptionCount++; /* local PV case */
        }
        ca_flush_io ();
        epicsThreadSleep ( 0.1 );
        ca_poll ();
        while ( acctstExceptionCount < 1u ) {
            printf ( "P" );
            fflush ( stdout );
            epicsThreadSleep ( 0.1 );
            ca_poll (); /* emulate typical GUI */
        }
        status = ca_add_exception_event ( 0, 0 );
        SEVCHK ( status, "exception notify install failed" );
        free ( pWS );
    }

    /*
     * force a put callback exception to occur
     */
    {
        dbr_string_t *pWS;
        unsigned i;

        pWS = malloc ( ca_element_count (chan) * MAX_STRING_SIZE );
        verify ( pWS );
        for ( i = 0; i < ca_element_count (chan); i++ ) {
            strcpy ( pWS[i], "@#$%" );
        }
        arrayEventExceptionNotifyComplete = 0u;
        status = ca_array_put_callback ( DBR_STRING,
            ca_element_count (chan), chan, pWS,
            arrayEventExceptionNotify, 0);
        if ( status != ECA_NORMAL ) {
            arrayEventExceptionNotifyComplete = 1;
        }
        ca_flush_io ();
        epicsThreadSleep ( 0.1 );
        ca_poll ();
        while ( ! arrayEventExceptionNotifyComplete ) {
            printf ( "PCB" );
            fflush ( stdout );
            epicsThreadSleep ( 0.1 );
            ca_poll (); /* emulate typical GUI */
        }
        free ( pWS );
    }

    showProgressEnd ( interestLevel );
}

void fdcb

(

void *

parg

)

Definition at line 2860 of file acctst.c.

{
    ca_poll ();
}

void fdManagerVerify	(	const char *	pName,
		unsigned	interestLevel
	)

Definition at line 3062 of file acctst.c.

{
    int status;
    fdctx * mgrCtx;
    struct timeval tmo;
    chid newChan;
    evid subscription;
    unsigned eventCount = 0u;
    epicsTimeStamp begin, end;

    mgrCtx = fdmgr_init ();
    verify ( mgrCtx );

    showProgressBegin ( "fdManagerVerify", interestLevel );

    status = ca_add_fd_registration ( fdRegCB, mgrCtx );
    verify ( status == ECA_NORMAL );

    status = ca_create_channel ( pName, 0, 0, 0, & newChan );
    verify ( status == ECA_NORMAL );

    while ( ca_state ( newChan ) != cs_conn ) {
        tmo.tv_sec = 6000;
        tmo.tv_usec = 0;
        status = fdmgr_pend_event ( mgrCtx, & tmo );
        verify ( status >= 0 );
    }

    showProgress ( interestLevel );

    status = ca_add_event ( DBR_FLOAT, newChan,
        nUpdatesTester, & eventCount,  & subscription );
    verify ( status == ECA_NORMAL );

    status = ca_flush_io ();
    verify ( status == ECA_NORMAL );

    while ( eventCount < 1 ) {
        tmo.tv_sec = 6000;
        tmo.tv_usec = 0;
        status = fdmgr_pend_event ( mgrCtx, & tmo );
        verify ( status >= 0 );
    }

    showProgress ( interestLevel );

    status = ca_clear_event ( subscription );
    verify ( status == ECA_NORMAL );

    status = ca_flush_io ();
    verify ( status == ECA_NORMAL );

    /* look for infinite loop in fd manager schedualing */
    epicsTimeGetCurrent ( & begin );
    eventCount = 0u;
    while ( 1 ) {
        double delay;
        tmo.tv_sec = 1;
        tmo.tv_usec = 0;
        status = fdmgr_pend_event ( mgrCtx, & tmo );
        verify ( status >= 0 );
        epicsTimeGetCurrent ( & end );
        delay = epicsTimeDiffInSeconds ( & end, & begin );
        if ( delay >= 1.0 ) {
            break;
        }
        verify ( eventCount++ < 100 );
    }

    showProgress ( interestLevel );

    status = ca_clear_channel ( newChan );
    verify ( status == ECA_NORMAL );

    status = ca_add_fd_registration ( 0, 0 );
    verify ( status == ECA_NORMAL );

    status = fdmgr_delete ( mgrCtx );
    verify ( status >= 0 );

    showProgressEnd ( interestLevel );
}

void fdRegCB	(	void *	parg,
		int	fd,
		int	opened
	)

Definition at line 2865 of file acctst.c.

{
    int status;

    fdctx * mgrCtx = ( fdctx * ) parg;
    if ( opened ) {
        status = fdmgr_add_callback (
            mgrCtx, fd, fdi_read, fdcb, 0 );
        verify ( status >= 0 );
    }
    else {
        status = fdmgr_clear_callback (
            mgrCtx, fd, fdi_read );
        verify ( status >= 0 );
    }
}

void floatTest	(	chid	chan,
		dbr_float_t	beginValue,
		dbr_float_t	increment,
		dbr_float_t	epsilon,
		unsigned	iterations
	)

Definition at line 872 of file acctst.c.

{
    unsigned i;
    dbr_float_t fval;
    dbr_float_t fretval;
    int status;

    fval = beginValue;
    for ( i=0; i < iterations; i++ ) {
        fretval = FLT_MAX;
        status = ca_put ( DBR_FLOAT, chan, &fval );
        SEVCHK ( status, NULL );
        status = ca_get ( DBR_FLOAT, chan, &fretval );
        SEVCHK ( status, NULL );
        status = ca_pend_io ( timeoutToPendIO );
        SEVCHK (status, NULL);
        if ( fabs ( fval - fretval ) > epsilon ) {
            printf ( "float test failed val written %f\n", fval );
            printf ( "float test failed val read %f\n", fretval );
            verify (0);
        }
        fval += increment;
    }
}

void getCallbackStateChange

(

struct event_handler_args

args

)

Definition at line 313 of file acctst.c.

{
    appChan *pChan = (appChan *) args.usr;

    verify ( pChan->channel == args.chid );
    verify ( pChan->connected );
    if ( args.status != ECA_NORMAL ) {
        printf ( "getCallbackStateChange abnormal status was \"%s\"\n",
            ca_message ( args.status ) );
        verify ( args.status == ECA_NORMAL );
    }

    getCallbackCount++;
    pChan->getCallbackCount++;
}

void grEnumTest	(	chid	chan,
		unsigned	interestLevel
	)

Definition at line 719 of file acctst.c.

{
    struct dbr_gr_enum ge;
    unsigned count;
    int status;
    unsigned i;

    showProgressBegin ( "grEnumTest", interestLevel );

    ge.no_str = -1;

    status = ca_get (DBR_GR_ENUM, chan, &ge);
    SEVCHK (status, "DBR_GR_ENUM ca_get()");

    status = ca_pend_io (timeoutToPendIO);
    verify (status == ECA_NORMAL);

    verify ( ge.no_str >= 0 && ge.no_str < NELEMENTS(ge.strs) );
    if ( ge.no_str > 0 ) {
        printf ("Enum state str = {");
        count = (unsigned) ge.no_str;
        for (i=0; i<count; i++) {
            printf ("\"%s\" ", ge.strs[i]);
        }
        printf ("}");
    }
    showProgressEnd ( interestLevel );
}

void ioTesterEvent

(

struct event_handler_args

args

)

Definition at line 258 of file acctst.c.

{
    if ( args.status == ECA_NORMAL ) {
        int status;
        status = ca_get_callback ( DBR_STS_STRING, args.chid, ioTesterGet, args.usr );
        SEVCHK ( status, 0 );
    }
    else {
        printf ( "subscription update failed for \"%s\" because \"%s\"",
            ca_name ( args.chid ), ca_message ( args.status ) );
    }
}

void ioTesterGet

(

struct event_handler_args

args

)

Definition at line 246 of file acctst.c.

{
    if ( args.status == ECA_NORMAL ) {
        unsigned *pCtr = (unsigned *) args.usr;
        ( *pCtr ) ++;
    }
    else {
        printf("get call back failed for \"%s\" because \"%s\"",
            ca_name ( args.chid ), ca_message ( args.status ) );
    }
}

void monitorAddConnectionCallback

(

struct connection_handler_args

args

)

Definition at line 2337 of file acctst.c.

{
    if ( args.op == CA_OP_CONN_UP ) {
        unsigned * pEventCount = ( unsigned * ) ca_puser ( args.chid );
        int status;
        verify ( *pEventCount == 0u );
        (*pEventCount)++;
        status = ca_create_subscription ( DBR_DOUBLE, 1,
            args.chid, DBE_VALUE, nUpdatesTester, ca_puser ( args.chid ), 0 );
        SEVCHK ( status, "monitorAddConnectionCallback create subscription" );
    }
    else {
        fprintf ( stderr, "disconnect during monitorAddConnectionCallbackTest?\n" );
    }
}

void monitorAddConnectionCallbackTest	(	const char *	pName,
		unsigned	interestLevel
	)

Definition at line 2359 of file acctst.c.

{
    unsigned i;
    chid chan;
    int status;
    unsigned eventCount = 0u;
    unsigned getCallbackCount = 0u;

    showProgressBegin ( "monitorAddConnectionCallbackTest", interestLevel );

    for ( i = 0; ca_get_ioc_connection_count () > 0 ; i++ ) {
        ca_pend_event ( 0.1 );
        verify ( i < 100 );
    }

    status = ca_create_channel ( pName,
        monitorAddConnectionCallback, &eventCount, 0, & chan );
    SEVCHK ( status, "monitorAddConnectionCallbackTest create channel" );

    while ( eventCount < 2 ) {
        ca_pend_event ( 0.1 );
    }
    verify ( eventCount >= 2u );

    status = ca_get_callback ( DBR_DOUBLE, chan, nUpdatesTester, &getCallbackCount );
    SEVCHK ( status, "monitorAddConnectionCallback get callback" );
    while ( getCallbackCount == 0 ) {
        ca_pend_event ( 0.1 );
    }
    verify ( eventCount >= 2u );
    verify ( getCallbackCount == 1u );

    status = ca_clear_channel ( chan );
    SEVCHK ( status, "monitorAddConnectionCallbackTest clear channel" );

    status = ca_flush_io ();
    SEVCHK ( status, "monitorAddConnectionCallbackTest flush" );

    showProgressEnd ( interestLevel );
}

void monitorSubscriptionFirstUpdateTest	(	const char *	pName,
		chid	chan,
		unsigned	interestLevel
	)

Definition at line 118 of file acctst.c.

{
    int status;
    struct dbr_ctrl_double currentVal;
    double delta;
    unsigned eventCount = 0u;
    unsigned waitCount = 0u;
    evid id;
    chid chan2;

    showProgressBegin ( "monitorSubscriptionFirstUpdateTest", interestLevel );

    /*
     * verify that the first event arrives (with evid)
     * and channel connected
     */
    status = ca_add_event ( DBR_FLOAT,
                chan, nUpdatesTester, &eventCount, &id );
    SEVCHK ( status, 0 );
    ca_flush_io ();
    epicsThreadSleep ( 0.1 );
    ca_poll (); /* emulate typical GUI */
    while ( eventCount < 1 && waitCount++ < 100 ) {
        printf ( "e" );
        fflush ( stdout );
        epicsThreadSleep ( 0.1 );
        ca_poll (); /* emulate typical GUI */
    }
    verify ( eventCount > 0 );

    /* clear any knowledge of old gets */
    ca_pend_io ( 1e-5 );

    /* verify that a ca_put() produces an update, but */
    /* this may fail if there is an unusual deadband */
    status = ca_get ( DBR_CTRL_DOUBLE, chan, &currentVal );
    SEVCHK ( status, NULL );
    status = ca_pend_io ( timeoutToPendIO );
    SEVCHK ( status, NULL );
    eventCount = 0u;
    waitCount = 0u;
    delta = ( currentVal.upper_ctrl_limit - currentVal.lower_ctrl_limit ) / 4.0;
    if ( delta <= 0.0 ) {
        delta = 100.0;
    }
    if ( currentVal.value + delta < currentVal.upper_ctrl_limit ) {
        currentVal.value += delta;
    }
    else {
        currentVal.value -= delta;
    }
    status = ca_put ( DBR_DOUBLE, chan, &currentVal.value );
    SEVCHK ( status, NULL );
    ca_flush_io ();
    epicsThreadSleep ( 0.1 );
    ca_poll (); /* emulate typical GUI */
    while ( eventCount < 1 && waitCount++ < 100 ) {
        printf ( "p" );
        fflush ( stdout );
        epicsThreadSleep ( 0.1 );
        ca_poll (); /* emulate typical GUI */
    }
    verify ( eventCount > 0 );

    status = ca_clear_event ( id );
    SEVCHK (status, 0);

    /*
     * verify that the first event arrives (w/o evid)
     * and when channel initially disconnected
     */
    eventCount = 0u;
    waitCount = 0u;
    status = ca_search ( pName, &chan2 );
    SEVCHK ( status, 0 );
    status = ca_add_event ( DBR_FLOAT, chan2,
                nUpdatesTester, &eventCount, 0 );
    SEVCHK ( status, 0 );
    status = ca_pend_io ( timeoutToPendIO );
    SEVCHK (status, 0);
    epicsThreadSleep ( 0.1 );
    ca_poll ();
    while ( eventCount < 1 && waitCount++ < 100 ) {
        printf ( "w" );
        fflush ( stdout );
        epicsThreadSleep ( 0.1 );
        ca_poll (); /* emulate typical GUI */
    }
    verify ( eventCount > 0 );

    /* verify that a ca_put() produces an update, but */
    /* this may fail if there is an unusual deadband */
    status = ca_get ( DBR_CTRL_DOUBLE, chan2, &currentVal );
    SEVCHK ( status, NULL );
    status = ca_pend_io ( timeoutToPendIO );
    SEVCHK ( status, NULL );
    eventCount = 0u;
    waitCount = 0u;
    delta = ( currentVal.upper_ctrl_limit - currentVal.lower_ctrl_limit ) / 4.0;
    if ( delta <= 0.0 ) {
        delta = 100.0;
    }
    if ( currentVal.value + delta < currentVal.upper_ctrl_limit ) {
        currentVal.value += delta;
    }
    else {
        currentVal.value -= delta;
    }
    status = ca_put ( DBR_DOUBLE, chan2, &currentVal.value );
    SEVCHK ( status, NULL );
    ca_flush_io ();
    epicsThreadSleep ( 0.1 );
    ca_poll ();
    while ( eventCount < 1 && waitCount++ < 100 ) {
        printf ( "t" );
        fflush ( stdout );
        epicsThreadSleep ( 0.1 );
        ca_poll (); /* emulate typical GUI */
    }
    verify ( eventCount > 0 );

    /* clean up */
    status = ca_clear_channel ( chan2 );
    SEVCHK ( status, 0 );

    showProgressEnd ( interestLevel );
}

void monitorUpdateTest	(	chid	chan,
		unsigned	interestLevel
	)

Definition at line 2408 of file acctst.c.

{
    eventTest       test[100];
    dbr_float_t     temp, getResp;
    unsigned        i, j;
    unsigned        flowCtrlCount = 0u;
    unsigned        prevPassCount;
    unsigned        tries;

    if ( ! ca_write_access ( chan ) ) {
        printf ("skipped monitorUpdateTest test - no write access\n");
        return;
    }

    if ( dbr_value_class[ca_field_type ( chan )] != dbr_class_float ) {
        printf ("skipped monitorUpdateTest test - not an analog type\n");
        return;
    }

    showProgressBegin ( "monitorUpdateTest", interestLevel );

    /*
     * set channel to known value
     */
    temp = 1;
    SEVCHK ( ca_put ( DBR_FLOAT, chan, &temp ), NULL );

    for ( i = 0; i < NELEMENTS(test); i++ ) {
        test[i].count = 0;
        test[i].lastValue = -1.0f;
        SEVCHK(ca_add_event(DBR_GR_FLOAT, chan, updateTestEvent,
            &test[i], &test[i].id),NULL);
    }

    /*
     * force all of the monitors subscription requests to
     * complete
     *
     * NOTE: this hopefully demonstrates that when the
     * server is very busy with monitors the client
     * is still able to punch through with a request.
     */
    SEVCHK ( ca_get ( DBR_FLOAT, chan, &getResp) ,NULL );
    SEVCHK ( ca_pend_io ( timeoutToPendIO ) ,NULL );

    showProgress ( interestLevel );

    /*
     * pass the test only if we get the first monitor update
     */
    tries = 0;
    while ( 1 ) {
        unsigned nFailed = 0u;
        epicsThreadSleep ( 0.1 );
        ca_poll (); /* emulate typical GUI */
        for ( i = 0; i < NELEMENTS ( test ); i++ ) {
            if ( test[i].count > 0 ) {
                if ( test[i].lastValue != temp ) {
                    nFailed++;
                }
            }
            else {
                nFailed++;
            }
        }
        if ( nFailed == 0u ) {
            break;
        }
        printf ( "-" );
        fflush ( stdout );
        verify ( tries++ < 50 );
    }

    showProgress ( interestLevel );

    /*
     * attempt to uncover problems where the last event isnt sent
     * and hopefully get into a flow control situation
     */
    prevPassCount = 0u;
    for ( i = 0; i < 10; i++ ) {
        for ( j = 0; j < NELEMENTS(test); j++ ) {
            SEVCHK ( ca_clear_event ( test[j].id ), NULL );
            test[j].count = 0;
            test[j].lastValue = -1.0f;
            SEVCHK ( ca_add_event ( DBR_GR_FLOAT, chan, updateTestEvent,
                &test[j], &test[j].id ) , NULL );
        }

        for ( j = 0; j <= i; j++ ) {
            temp = monitorUpdateTestPattern ( j );
            SEVCHK ( ca_put ( DBR_FLOAT, chan, &temp ), NULL );
        }

        /*
         * wait for the above to complete
         */
        getResp = -1;
        SEVCHK ( ca_get ( DBR_FLOAT, chan, &getResp ), NULL );
        SEVCHK ( ca_pend_io ( timeoutToPendIO ), NULL );

        if ( getResp != temp ) {
            printf ( "getResp=%f, temp=%f\n", getResp, temp );
            verify ( getResp == temp );
        }

        /*
         * wait for all of the monitors to have correct values
         */
        tries = 0;
        while (1) {
            unsigned passCount = 0;
            unsigned tmpFlowCtrlCount = 0u;
            epicsThreadSleep ( 0.1 );
            ca_poll (); /* emulate typical GUI */
            for ( j = 0; j < NELEMENTS ( test ); j++ ) {
                /*
                 * we shouldnt see old monitors because
                 * we resubscribed
                 */
                verify ( test[j].count <= i + 2 );
                if ( test[j].lastValue == temp ) {
                    if ( test[j].count < i + 1 ) {
                        tmpFlowCtrlCount++;
                    }
                    passCount++;
                }
            }
            if ( passCount == NELEMENTS ( test ) ) {
                flowCtrlCount += tmpFlowCtrlCount;
                break;
            }
            if ( passCount == prevPassCount ) {
                verify ( tries++ < 500 );
                if ( tries % 50 == 0 ) {
                    for ( j = 0; j <= i; j++ ) {
                        dbr_float_t pat = monitorUpdateTestPattern ( j );
                        if ( pat == test[0].lastValue ) {
                            break;
                        }
                    }
                    if ( j <= i) {
                        printf ( "-(%d)", i-j );
                    }
                    else {
                        printf ( "." );
                    }
                    fflush ( stdout );
                }
            }
            prevPassCount = passCount;
        }
    }

    showProgress ( interestLevel );

    /*
     * delete the event subscriptions
     */
    for ( i = 0; i < NELEMENTS ( test ); i++ ) {
        SEVCHK ( ca_clear_event ( test[i].id ), NULL );
    }

    /*
     * force all of the clear event requests to
     * complete
     */
    SEVCHK ( ca_get ( DBR_FLOAT, chan, &temp ), NULL );
    SEVCHK ( ca_pend_io ( timeoutToPendIO ), NULL );

    /* printf ( "flow control bypassed %u events\n", flowCtrlCount ); */

    showProgressEnd ( interestLevel );
}

dbr_float_t monitorUpdateTestPattern

(

unsigned

iter

)

Definition at line 2232 of file acctst.c.

{
    return ( (float) iter ) * 10.12345f + 10.7f;
}

void multiple_sg_requests	(	chid	chix,
		CA_SYNC_GID	gid
	)

Definition at line 1255 of file acctst.c.

{
    int status;
    unsigned i;
    static dbr_float_t fvalput = 3.3F;
    static dbr_float_t fvalget;

    for ( i=0; i < 1000; i++ ) {
        if ( ca_write_access (chix) ){
            status = ca_sg_array_put ( gid, DBR_FLOAT, 1,
                        chix, &fvalput);
            SEVCHK ( status, NULL );
        }

        if ( ca_read_access (chix) ) {
            status = ca_sg_array_get ( gid, DBR_FLOAT, 1,
                    chix, &fvalget);
            SEVCHK ( status, NULL );
        }
    }
}

void multiSubscriptionDeleteTest	(	chid	chan,
		unsigned	interestLevel
	)

Definition at line 1494 of file acctst.c.

{
    unsigned count = 0u;
    evid mid[1000];
    dbr_float_t temp, getResp;
    unsigned i;

    showProgressBegin ( "multiSubscriptionDeleteTest", interestLevel );

    for ( i=0; i < NELEMENTS (mid); i++ ) {
        SEVCHK ( ca_add_event ( DBR_GR_FLOAT, chan, noopSubscriptionStateChange,
            &count, &mid[i]) , NULL );
    }

    /*
     * force all of the monitors subscription requests to
     * complete
     *
     * NOTE: this hopefully demonstrates that when the
     * server is very busy with monitors the client
     * is still able to punch through with a request.
     */
    SEVCHK ( ca_get ( DBR_FLOAT,chan,&getResp ), NULL );
    SEVCHK ( ca_pend_io ( timeoutToPendIO ), NULL );

    showProgress ( interestLevel );

    /*
     * attempt to generate heavy event traffic before initiating
     * the monitor delete
     */
    if ( ca_write_access (chan) ) {
        for ( i=0; i < NELEMENTS (mid); i++ ) {
            temp = (float) i;
            SEVCHK ( ca_put (DBR_FLOAT, chan, &temp), NULL);
        }
    }

    showProgress ( interestLevel );

    /*
     * without pausing begin deleting the event subscriptions
     * while the queue is full
     *
     * continue attempting to generate heavy event traffic
     * while deleting subscriptions with the hope that we will
     * deleting an event at the instant that its callback is
     * occurring
     */
    for ( i=0; i < NELEMENTS (mid); i++ ) {
        if ( ca_write_access (chan) ) {
            temp = (float) i;
            SEVCHK ( ca_put (DBR_FLOAT, chan, &temp), NULL);
        }
        SEVCHK ( ca_clear_event ( mid[i]), NULL );
    }

    showProgress ( interestLevel );

    /*
     * force all of the clear event requests to complete
     */
    SEVCHK ( ca_get (DBR_FLOAT,chan,&temp), NULL );
    SEVCHK ( ca_pend_io (timeoutToPendIO), NULL );

    showProgressEnd ( interestLevel );
}

void noopExceptionCallback

(

struct exception_handler_args

args

)

Definition at line 3204 of file acctst.c.

{
}

void noopSubscriptionStateChange

(

struct event_handler_args

args

)

Definition at line 373 of file acctst.c.

{
    if ( args.status != ECA_NORMAL ) {
        printf ( "noopSubscriptionStateChange: subscription update failed for \"%s\" because \"%s\"",
            ca_name ( args.chid ), ca_message ( args.status ) );
    }
}

void nUpdatesTester

(

struct event_handler_args

args

)

Definition at line 106 of file acctst.c.

{
    if ( args.status == ECA_NORMAL ) {
        unsigned *pCtr = (unsigned *) args.usr;
        ( *pCtr ) ++;
    }
    else {
        printf ( "subscription update failed for \"%s\" because \"%s\"",
            ca_name ( args.chid ), ca_message ( args.status ) );
    }
}

void pend_event_delay_test

(

dbr_double_t

request

)

Definition at line 2154 of file acctst.c.

{
    int     status;
    epicsTimeStamp    end_time;
    epicsTimeStamp    start_time;
    dbr_double_t    delay;
    dbr_double_t    accuracy;

    epicsTimeGetCurrent ( &start_time );
    status = ca_pend_event ( request );
    if (status != ECA_TIMEOUT) {
        SEVCHK(status, NULL);
    }
    epicsTimeGetCurrent(&end_time);
    delay = epicsTimeDiffInSeconds ( &end_time, &start_time );
    accuracy = 100.0*(delay-request)/request;
    printf ( "CA pend event delay = %f sec results in error = %f %%\n",
        request, accuracy );
    verify ( fabs(accuracy) < 10.0 );
}

void selfDeleteEvent

(

struct event_handler_args

args

)

Definition at line 1678 of file acctst.c.

{
    int status;
    status = ca_clear_event ( globalEventID );
    verify ( status == ECA_NORMAL );
}

void showProgress

(

unsigned

interestLevel

)

Definition at line 98 of file acctst.c.

{
    if ( interestLevel > 0 ) {
        printf ( "." );
        fflush ( stdout );
    }
}

void showProgressBegin	(	const char *	pTestName,
		unsigned	interestLevel
	)

Definition at line 68 of file acctst.c.

{

    if ( interestLevel > 0 ) {
        if ( interestLevel > 1 ) {
            printf ( "%s ", pTestName );
            epicsTimeGetCurrent ( & showProgressBeginTime );
        }
        printf ( "{" );
    }
    fflush ( stdout );
}

void showProgressEnd

(

unsigned

interestLevel

)

Definition at line 81 of file acctst.c.

{
    if ( interestLevel > 0 ) {
        printf ( "}" );
        if ( interestLevel > 1 ) {
            epicsTimeStamp showProgressEndTime;
            double delay;
            epicsTimeGetCurrent ( & showProgressEndTime );
            delay = epicsTimeDiffInSeconds ( &showProgressEndTime, &showProgressBeginTime );
            printf ( " %f sec\n", delay );
        }
        else {
            fflush ( stdout );
        }
    }
}

void singleSubscriptionDeleteTest	(	chid	chan,
		unsigned	interestLevel
	)

Definition at line 1570 of file acctst.c.

{
    unsigned count = 0u;
    evid sid;
    dbr_float_t temp, getResp;
    unsigned i;

    showProgressBegin ( "singleSubscriptionDeleteTest", interestLevel );

    for ( i=0; i < 1000; i++ ){
        count = 0u;
        SEVCHK ( ca_add_event ( DBR_GR_FLOAT, chan, noopSubscriptionStateChange,
            &count, &sid) , NULL );

        if ( i % 100 == 0 ) {
            showProgress ( interestLevel );
        }

        /*
         * force the subscription request to complete
         */
        SEVCHK ( ca_get ( DBR_FLOAT, chan, &getResp ), NULL );
        SEVCHK ( ca_pend_io ( timeoutToPendIO ), NULL );

        /*
         * attempt to generate heavy event traffic before initiating
         * the monitor delete
         *
         * try to interrupt the recv thread while it is processing
         * incoming subscription updates
         */
        if ( ca_write_access (chan) ) {
            unsigned j = 0;
            while ( j < i ) {
                temp = (float) j++;
                SEVCHK ( ca_put (DBR_FLOAT, chan, &temp),
                    "singleSubscriptionDeleteTest - one of multiple puts" );
            }
            ca_flush_io ();
        }

        SEVCHK ( ca_clear_event ( sid ), NULL );
    }

    showProgressEnd ( interestLevel );
}

void subscriptionStateChange

(

struct event_handler_args

args

)

Definition at line 359 of file acctst.c.

{
    struct dbr_sts_string * pdbrgs = ( struct dbr_sts_string * ) args.dbr;
    appChan *pChan = (appChan *) args.usr;

    verify ( args.status == ECA_NORMAL );
    verify ( pChan->channel == args.chid );
    verify ( pChan->connected );
    verify ( args.type == DBR_STS_STRING );
    verify ( strlen ( pdbrgs->value ) <= MAX_STRING_SIZE );
    pChan->subscriptionUpdateCount++;
    subscriptionUpdateCount++;
}

void test_sync_groups	(	chid	chan,
		unsigned	interestLevel
	)

Definition at line 1280 of file acctst.c.

{
    int status;
    CA_SYNC_GID gid1=0;
    CA_SYNC_GID gid2=0;

    if ( ! ca_v42_ok ( chan ) ) {
        printf ( "skipping sync group test - server is on wrong version\n" );
    }

    showProgressBegin ( "test_sync_groups", interestLevel );

    status = ca_sg_create ( &gid1 );
    SEVCHK ( status, NULL );

    multiple_sg_requests ( chan, gid1 );
    status = ca_sg_reset ( gid1 );
    SEVCHK ( status, NULL );

    status = ca_sg_create ( &gid2 );
    SEVCHK ( status, NULL );

    multiple_sg_requests ( chan, gid2 );
    multiple_sg_requests ( chan, gid1 );
    status = ca_sg_test ( gid2 );
    SEVCHK ( status, "SYNC GRP2" );
    status = ca_sg_test ( gid1 );
    SEVCHK ( status, "SYNC GRP1" );
    status = ca_sg_block ( gid1, 500.0 );
    SEVCHK ( status, "SYNC GRP1" );
    status = ca_sg_block ( gid2, 500.0 );
    SEVCHK ( status, "SYNC GRP2" );

    status = ca_sg_delete ( gid2 );
    SEVCHK (status, NULL);
    status = ca_sg_create ( &gid2 );
    SEVCHK (status, NULL);

    multiple_sg_requests ( chan, gid1 );
    multiple_sg_requests ( chan, gid2 );
    status = ca_sg_block ( gid1, 500.0 );
    SEVCHK ( status, "SYNC GRP1" );
    status = ca_sg_block ( gid2, 500.0 );
    SEVCHK ( status, "SYNC GRP2" );
    status = ca_sg_delete  ( gid1 );
    SEVCHK ( status, NULL );
    status = ca_sg_delete ( gid2 );
    SEVCHK ( status, NULL );

    showProgressEnd ( interestLevel );
}

void testMultithreadSubscr

(

void *

pParm

)

Definition at line 2971 of file acctst.c.

{
    MultiThreadSubscrTest * const pMultiThreadSubscrTest =
                                ( MultiThreadSubscrTest * ) pParm;
    int status;
    unsigned i;

    status = ca_context_create ( ca_enable_preemptive_callback );
    verify ( status == ECA_NORMAL );
    pMultiThreadSubscrTest->m_pCtx = ca_current_context ();
    verify ( pMultiThreadSubscrTest->m_pCtx );
    status = ca_create_channel (
                pMultiThreadSubscrTest->m_chanName,
                testMultithreadSubscrConnHandler,
                pMultiThreadSubscrTest,
                CA_PRIORITY_MIN,
                & pMultiThreadSubscrTest->m_chan );
    verify ( status == ECA_NORMAL );

    showProgressBegin ( "verifyMultithreadSubscr",
            pMultiThreadSubscrTest->m_interestLevel );
    i = 0;
    while ( TRUE ) {
        int success = FALSE;
        epicsEventWaitStatus eventWaitStatus;
        epicsMutexMustLock ( pMultiThreadSubscrTest->m_mutex );
        success = pMultiThreadSubscrTest->m_testComplete;
        epicsMutexUnlock ( pMultiThreadSubscrTest->m_mutex );
        if ( success ) {
            break;
        }
        eventWaitStatus = epicsEventWaitWithTimeout (
                            pMultiThreadSubscrTest->m_testCompleteEvent, 0.1 );
        verify ( eventWaitStatus ==  epicsEventWaitOK ||
                eventWaitStatus ==  epicsEventWaitTimeout );
        if ( i++ % 100 == 0u )
            showProgress ( pMultiThreadSubscrTest->m_interestLevel );
        verify ( i < 1000 );
    }
    showProgressEnd ( pMultiThreadSubscrTest->m_interestLevel );

    status = ca_clear_channel ( pMultiThreadSubscrTest->m_chan );
    verify ( status == ECA_NORMAL );
    ca_context_destroy ();
    epicsEventSignal ( pMultiThreadSubscrTest->m_threadExitEvent );
}

void testMultithreadSubscrConnHandler

(

struct connection_handler_args

args

)

Definition at line 2947 of file acctst.c.

{
    MultiThreadSubscrTest * const pMultiThreadSubscrTest =
                        ( MultiThreadSubscrTest * ) ca_puser ( args.chid );
    epicsMutexMustLock ( pMultiThreadSubscrTest->m_mutex );
    if ( !pMultiThreadSubscrTest->m_testInitiated &&
            args.op == CA_OP_CONN_UP ) {
        int i;
        pMultiThreadSubscrTest->m_testInitiated = TRUE;
        for ( i = 0; i < pMultiThreadSubscrTest->m_nUpdatesRequired; i++ ) {
            char threadname[64];
            epicsThreadId threadId;
            sprintf(threadname, "testSubscr%06u", i);
            threadId = epicsThreadCreate ( threadname,
                        epicsThreadPriorityMedium,
                        epicsThreadGetStackSize(epicsThreadStackSmall),
                        testMultithreadSubscrCreateSubscr,
                        pMultiThreadSubscrTest );
            verify ( threadId );
        }
    }
    epicsMutexUnlock ( pMultiThreadSubscrTest->m_mutex );
}

void unequalServerBufferSizeTest	(	const char *	pName,
		unsigned	interestLevel
	)

Definition at line 2085 of file acctst.c.

{
    dbr_double_t *pRF, *pWF;
    unsigned connections;
    chid newChan;
    int status;

    showProgressBegin ( "unequalServerBufferSizeTest", interestLevel );

    /* this test must be run when no channels are connected */
    connections = ca_get_ioc_connection_count ();
    verify ( connections == 0u );

    status = ca_create_channel ( pName, 0, 0, 0, & newChan );
    verify ( status == ECA_NORMAL );
    status = ca_pend_io ( timeoutToPendIO );
    verify ( status == ECA_NORMAL );

    showProgress ( interestLevel );

    if ( ! ca_write_access ( newChan ) ) {
        printf ( "skipping unequal buffer size test - no write access\n" );
        status = ca_clear_channel ( newChan );
        verify ( status == ECA_NORMAL );
        return;
    }

    pRF = (dbr_double_t *) calloc ( ca_element_count (newChan), sizeof (*pRF) );
    verify ( pRF != NULL );

    pWF = (dbr_double_t *) calloc ( ca_element_count (newChan), sizeof (*pWF) );
    verify ( pWF != NULL );

    status = ca_array_get ( DBR_DOUBLE, ca_element_count ( newChan ),
                newChan, pRF );
    status = ca_pend_io ( timeoutToPendIO );
    verify ( status == ECA_NORMAL );
    status = ca_clear_channel ( newChan );
    verify ( status == ECA_NORMAL );

    showProgress ( interestLevel );

    status = ca_create_channel ( pName, 0, 0, 0, &newChan );
    verify ( status == ECA_NORMAL );
    status = ca_pend_io ( timeoutToPendIO );
    verify ( status == ECA_NORMAL );

    showProgress ( interestLevel );

    status = ca_array_put ( DBR_DOUBLE, ca_element_count ( newChan ),
                newChan, pWF );
    verify ( status == ECA_NORMAL );
    status = ca_array_get ( DBR_DOUBLE, 1,
                newChan, pRF );
    verify ( status == ECA_NORMAL );
    status = ca_pend_io ( timeoutToPendIO );
    verify ( status == ECA_NORMAL );
    status = ca_clear_channel ( newChan );
    verify ( status == ECA_NORMAL );

    free ( pRF );
    free ( pWF );

    showProgressEnd ( interestLevel );
}

void updateTestEvent

(

struct event_handler_args

args

)

Definition at line 2224 of file acctst.c.

{
    eventTest *pET = (eventTest *) args.usr;
    struct dbr_gr_float *pGF = (struct dbr_gr_float *) args.dbr;
    pET->lastValue = pGF->value;
    pET->count++;
}

void verifyAnalogIO	(	chid	chan,
		int	dataType,
		double	min,
		double	max,
		int	minExp,
		int	maxExp,
		double	epsilon,
		unsigned	interestLevel
	)

Definition at line 932 of file acctst.c.

{
    int i;
    double incr;
    double epsil;
    double base;
    unsigned iter;


    if ( ! ca_write_access ( chan ) ) {
        printf ("skipped analog test - no write access\n");
        return;
    }

    if ( dbr_value_class[ca_field_type ( chan )] != dbr_class_float ) {
        printf ("skipped analog test - not an analog type\n");
        return;
    }

    showProgressBegin ( "verifyAnalogIO", interestLevel );

    epsil = epsilon * 4.0;
    base = min;
    for ( i = minExp; i <= maxExp; i += maxExp / 10 ) {
        incr = ldexp ( 0.5, i );
        if ( fabs (incr) > max /10.0 ) {
            iter = ( unsigned ) ( max / fabs (incr) );
        }
        else {
            iter = 10u;
        }
        if ( dataType == DBR_FLOAT ) {
            floatTest ( chan, (dbr_float_t) base, (dbr_float_t) incr,
                (dbr_float_t) epsil, iter );
        }
        else if (dataType == DBR_DOUBLE ) {
            doubleTest ( chan, (dbr_double_t) base, (dbr_double_t) incr,
                (dbr_double_t) epsil, iter );
        }
        else {
            verify ( 0 );
        }
    }
    base = max;
    for ( i = minExp; i <= maxExp; i += maxExp / 10 ) {
        incr = - ldexp ( 0.5, i );
        if ( fabs (incr) > max / 10.0 ) {
            iter = (unsigned) ( max / fabs (incr) );
        }
        else {
            iter = 10u;
        }
        if ( dataType == DBR_FLOAT ) {
            floatTest ( chan, (dbr_float_t) base, (dbr_float_t) incr,
                (dbr_float_t) epsil, iter );
        }
        else if (dataType == DBR_DOUBLE ) {
            doubleTest ( chan, (dbr_double_t) base, (dbr_double_t) incr,
                (dbr_double_t) epsil, iter );
         }
        else {
            verify ( 0 );
        }
    }
    base = - max;
    for ( i = minExp; i <= maxExp; i += maxExp / 10 ) {
        incr = ldexp ( 0.5, i );
        if ( fabs (incr) > max / 10.0 ) {
            iter = (unsigned) ( max / fabs ( incr ) );
        }
        else {
            iter = 10l;
        }
        if ( dataType == DBR_FLOAT ) {
            floatTest ( chan, (dbr_float_t) base, (dbr_float_t) incr,
                (dbr_float_t) epsil, iter );
        }
        else if (dataType == DBR_DOUBLE ) {
            doubleTest ( chan, (dbr_double_t) base, (dbr_double_t) incr,
                (dbr_double_t) epsil, iter );
         }
        else {
            verify ( 0 );
        }
    }
    showProgressEnd ( interestLevel );
}

void verifyBadString	(	chid	chan,
		unsigned	interestLevel
	)

Definition at line 1219 of file acctst.c.

{
    int status;

    /*
     * verify that we detect that a large string has been written
     */
    if ( ca_write_access (chan) ) {
        dbr_string_t    stimStr;
        dbr_string_t    respStr;
        showProgressBegin ( "verifyBadString", interestLevel );
        memset (stimStr, 'a', sizeof (stimStr) );
        status = ca_array_put ( DBR_STRING, 1u, chan, stimStr );
        verify ( status != ECA_NORMAL );
        sprintf ( stimStr, "%u", 8u );
        status = ca_array_put ( DBR_STRING, 1u, chan, stimStr );
        verify ( status == ECA_NORMAL );
        status = ca_array_get ( DBR_STRING, 1u, chan, respStr );
        verify ( status == ECA_NORMAL );
        status = ca_pend_io ( timeoutToPendIO );
        verify ( status == ECA_NORMAL );
        if ( strcmp ( stimStr, respStr ) ) {
            printf (
    "Test fails if stim \"%s\" isnt roughly equiv to resp \"%s\"\n",
                stimStr, respStr);
        }
        showProgressEnd ( interestLevel );
    }
    else {
        printf ( "Skipped bad string test - no write access\n" );
    }
}

void verifyBlockingConnect	(	appChan *	pChans,
		unsigned	chanCount,
		unsigned	repetitionCount,
		unsigned	interestLevel
	)

Definition at line 515 of file acctst.c.

{
    int status;
    unsigned i, j;
    unsigned connections;
    unsigned backgroundConnCount = ca_get_ioc_connection_count ();

    showProgressBegin ( "verifyBlockingConnect", interestLevel );

    i = 0;
    while ( backgroundConnCount > 1u ) {
        backgroundConnCount = ca_get_ioc_connection_count ();
        verify ( i++ < 10 );
        printf ( "Z" );
        fflush ( stdout );
        epicsThreadSleep ( 1.0 );
    }

    for ( i = 0; i < repetitionCount; i++ ) {

        for ( j = 0u; j < chanCount; j++ ) {
            pChans[j].subscriptionUpdateCount = 0u;
            pChans[j].accessUpdateCount = 0u;
            pChans[j].accessRightsHandlerInstalled = 0;
            pChans[j].connectionUpdateCount = 0u;
            pChans[j].getCallbackCount = 0u;
            pChans[j].connected = 0u;

            status = ca_search_and_connect ( pChans[j].name, &pChans[j].channel, NULL, &pChans[j] );
            SEVCHK ( status, NULL );

            if ( ca_state ( pChans[j].channel ) == cs_conn ) {
                verify ( VALID_DB_REQ ( ca_field_type ( pChans[j].channel ) ) );
            }
            else {
                verify ( INVALID_DB_REQ ( ca_field_type ( pChans[j].channel ) ) );
                verify ( ca_test_io () == ECA_IOINPROGRESS );
            }

            status = ca_replace_access_rights_event (
                    pChans[j].channel, accessRightsStateChange );
            SEVCHK ( status, NULL );
            pChans[j].accessRightsHandlerInstalled = 1;
        }

        showProgress ( interestLevel );

        for ( j = 0u; j < chanCount; j += 2 ) {
            status = ca_change_connection_event ( pChans[j].channel, connectionStateChange );
            SEVCHK ( status, NULL );
        }

        for ( j = 0u; j < chanCount; j += 2 ) {
            status = ca_change_connection_event ( pChans[j].channel, NULL );
            SEVCHK ( status, NULL );
        }

        for ( j = 0u; j < chanCount; j += 2 ) {
            status = ca_change_connection_event ( pChans[j].channel, connectionStateChange );
            SEVCHK ( status, NULL );
        }

        for ( j = 0u; j < chanCount; j += 2 ) {
            status = ca_change_connection_event ( pChans[j].channel, NULL );
            SEVCHK ( status, NULL );
        }

        status = ca_pend_io ( timeoutToPendIO );
        SEVCHK ( status, NULL );

        ca_self_test ();

        showProgress ( interestLevel );

        verify ( ca_test_io () == ECA_IODONE );

        connections = ca_get_ioc_connection_count ();
        verify ( connections == backgroundConnCount );

        for ( j = 0u; j < chanCount; j++ ) {
            verify ( VALID_DB_REQ ( ca_field_type ( pChans[j].channel ) ) );
            verify ( ca_state ( pChans[j].channel ) == cs_conn );
            SEVCHK ( ca_clear_channel ( pChans[j].channel ), NULL );
        }

        ca_self_test ();

        ca_flush_io ();

        showProgress ( interestLevel );

        /*
         * verify that connections to IOC's that are
         * not in use are dropped
         */
        if ( ca_get_ioc_connection_count () != backgroundConnCount ) {
            epicsThreadSleep ( 0.1 );
            ca_poll ();
            j=0;
            while ( ca_get_ioc_connection_count () != backgroundConnCount ) {
                epicsThreadSleep ( 0.1 );
                ca_poll (); /* emulate typical GUI */
                verify ( ++j < 100 );
            }
        }
        showProgress ( interestLevel );
    }

    for ( j = 0u; j < chanCount; j++ ) {
        status = ca_search ( pChans[j].name, &pChans[j].channel );
        SEVCHK ( status, NULL );
    }

    for ( j = 0u; j < chanCount; j++ ) {
        status = ca_clear_channel ( pChans[j].channel );
        SEVCHK ( status, NULL );
    }

    verify ( ca_test_io () == ECA_IODONE );

    /*
     * verify ca_pend_io() does not see old search requests
     * (that did not specify a connection handler)
     */
    status = ca_search_and_connect ( pChans[0].name, &pChans[0].channel, NULL, NULL);
    SEVCHK ( status, NULL );

    if ( ca_state ( pChans[0].channel ) == cs_never_conn ) {
        /* force an early timeout */
        status = ca_pend_io ( 1e-16 );
        if ( status == ECA_TIMEOUT ) {
            /*
             * we end up here if the channel isnt on the same host
             */
            epicsThreadSleep ( 0.1 );
            ca_poll ();
            if ( ca_state( pChans[0].channel ) != cs_conn ) {
                while ( ca_state ( pChans[0].channel ) != cs_conn ) {
                    epicsThreadSleep ( 0.1 );
                    ca_poll (); /* emulate typical GUI */
                }
            }

            status = ca_search_and_connect ( pChans[1].name, &pChans[1].channel, NULL, NULL  );
            SEVCHK ( status, NULL );
            status = ca_pend_io ( 1e-16 );
            if ( status != ECA_TIMEOUT ) {
                verify ( ca_state ( pChans[1].channel ) == cs_conn );
            }
            status = ca_clear_channel ( pChans[1].channel );
            SEVCHK ( status, NULL );
        }
        else {
            verify ( ca_state( pChans[0].channel ) == cs_conn );
        }
    }
    status = ca_clear_channel( pChans[0].channel );
    SEVCHK ( status, NULL );

    ca_self_test ();

    showProgressEnd ( interestLevel );
}

void verifyBlockInPendIO	(	chid	chan,
		unsigned	interestLevel
	)

Definition at line 823 of file acctst.c.

{
    int status;

    if ( ca_read_access (chan) ) {
        dbr_long_t req;
        dbr_long_t resp;

        showProgressBegin ( "verifyBlockInPendIO", interestLevel );
        req = 0;
        resp = -100;
        SEVCHK ( ca_put (DBR_LONG, chan, &req), NULL );
        SEVCHK ( ca_get (DBR_LONG, chan, &resp), NULL );
        status = ca_pend_io (1.0e-12);
        if ( status == ECA_NORMAL ) {
            if ( resp != req ) {
                printf (
    "short tmo get block test failed - val written %d\n", req );
                printf (
    "short tmo tmo get block test failed - val read %d\n", resp );
                verify ( 0 );
            }
        }
        else if ( resp != -100 ) {
            printf ( "CA didnt block for get to return?\n" );
        }

        req = 1;
        resp = -100;
        SEVCHK ( ca_put (DBR_LONG, chan, &req), NULL );
        SEVCHK ( ca_get (DBR_LONG, chan, &resp), NULL );
        SEVCHK ( ca_pend_io (timeoutToPendIO) , NULL );
        if ( resp != req ) {
            printf (
    "long tmo get block test failed - val written %d\n", req);
            printf (
    "long tmo get block test failed - val read %d\n", resp);
            verify (0);
        }
        showProgressEnd ( interestLevel );
    }
    else {
        printf ("skipped pend IO block test - no read access\n");
    }
}

void verifyChannelPriorities	(	const char *	pName,
		unsigned	interestLevel
	)

Definition at line 2691 of file acctst.c.

{
    static const unsigned nPrio = 30;
    unsigned i;

    showProgressBegin ( "verifyChannelPriorities", interestLevel );

    for ( i = 0u; i < nPrio; i++ ) {
        int status;
        double value;
        chid chan0, chan1;
        unsigned priority0, priority1;

        priority0 = ( i * ( CA_PRIORITY_MAX - CA_PRIORITY_MIN ) ) / nPrio;
        priority0 += CA_PRIORITY_MIN;
        if ( priority0 > CA_PRIORITY_MAX ) {
            priority0 = CA_PRIORITY_MAX;
        }

        priority1 = ( (i+1) * ( CA_PRIORITY_MAX - CA_PRIORITY_MIN ) ) / nPrio;
        priority1 += CA_PRIORITY_MIN;
        if ( priority1 > CA_PRIORITY_MAX ) {
            priority1 = CA_PRIORITY_MAX;
        }

        status = ca_create_channel ( pName, 0, 0,
            priority0, &chan0 );
        SEVCHK ( status, "prioritized channel create failed" );

        status = ca_create_channel ( pName, 0, 0,
            priority1, &chan1 );
        SEVCHK ( status, "prioritized channel create failed" );

        status = ca_pend_io ( timeoutToPendIO );
        SEVCHK ( status, "prioritized channel connect failed" );
        verify ( status == ECA_NORMAL );

        value = i;
        status = ca_put ( DBR_DOUBLE, chan0, &value );
        SEVCHK ( status, "prioritized channel put failed" );
        status = ca_put ( DBR_DOUBLE, chan1, &value );
        SEVCHK ( status, "prioritized channel put failed" );

        status = ca_flush_io ();
        SEVCHK ( status, "prioritized channel flush failed" );

        status = ca_get ( DBR_DOUBLE, chan0, &value );
        SEVCHK ( status, "prioritized channel get failed" );
        status = ca_get ( DBR_DOUBLE, chan1, &value );
        SEVCHK ( status, "prioritized channel get failed" );

        status = ca_pend_io ( timeoutToPendIO );
        SEVCHK ( status, "prioritized channel pend io failed" );

        status = ca_clear_channel ( chan0 );
        SEVCHK ( status, "prioritized channel clear failed" );
        status = ca_clear_channel ( chan1 );
        SEVCHK ( status, "prioritized channel clear failed" );
    }

    showProgressEnd ( interestLevel );
}

void verifyClear	(	appChan *	pChans,
		unsigned	interestLevel
	)

Definition at line 684 of file acctst.c.

{
    int status;

    showProgressBegin ( "verifyClear", interestLevel );

    /*
     * verify channel clear before connect
     */
    status = ca_search ( pChans[0].name, &pChans[0].channel );
    SEVCHK ( status, NULL );

    status = ca_clear_channel ( pChans[0].channel );
    SEVCHK ( status, NULL );

    /*
     * verify subscription clear before connect
     * and verify that NULL evid does not cause failure
     */
    status = ca_search ( pChans[0].name, &pChans[0].channel );
    SEVCHK ( status, NULL );

    SEVCHK ( status, NULL );
    status = ca_add_event ( DBR_GR_DOUBLE,
            pChans[0].channel, noopSubscriptionStateChange, NULL, NULL );
    SEVCHK ( status, NULL );

    status = ca_clear_channel ( pChans[0].channel );
    SEVCHK ( status, NULL );
    showProgressEnd ( interestLevel );
}

void verifyClearChannelOnDisconnectCallback

(

struct connection_handler_args

args

)

Definition at line 3194 of file acctst.c.

{
    int * pDisconnectFlag = ca_puser ( args.chid );
    if ( args.op == CA_OP_CONN_DOWN ) {
        ca_clear_channel ( args.chid );
        *pDisconnectFlag = 1;
    }
}

void verifyConnectionHandlerConnect	(	appChan *	pChans,
		unsigned	chanCount,
		unsigned	repetitionCount,
		unsigned	interestLevel
	)

Definition at line 399 of file acctst.c.

{
    int status;
    unsigned i, j;

    showProgressBegin ( "verifyConnectionHandlerConnect", interestLevel );

    for ( i = 0; i < repetitionCount; i++ ) {
        subscriptionUpdateCount = 0u;
        accessUpdateCount = 0u;
        connectionUpdateCount = 0u;
        getCallbackCount = 0u;

        for ( j = 0u; j < chanCount; j++ ) {

            pChans[j].subscriptionUpdateCount = 0u;
            pChans[j].accessUpdateCount = 0u;
            pChans[j].accessRightsHandlerInstalled = 0;
            pChans[j].connectionUpdateCount = 0u;
            pChans[j].getCallbackCount = 0u;
            pChans[j].connected = 0u;

            status = ca_search_and_connect ( pChans[j].name,
                &pChans[j].channel, connectionStateChange, &pChans[j] );
            SEVCHK ( status, NULL );

            status = ca_replace_access_rights_event (
                    pChans[j].channel, accessRightsStateChange );
            SEVCHK ( status, NULL );
            pChans[j].accessRightsHandlerInstalled = 1;

            status = ca_add_event ( DBR_STS_STRING, pChans[j].channel,
                    subscriptionStateChange, &pChans[j], &pChans[j].subscription );
            SEVCHK ( status, NULL );

            verify ( ca_test_io () == ECA_IODONE );
        }

        ca_flush_io ();

        showProgress ( interestLevel );

        while ( connectionUpdateCount < chanCount ||
            getCallbackCount < chanCount ) {
            epicsThreadSleep ( 0.1 );
            ca_poll (); /* emulate typical GUI */
        }

        for ( j = 0u; j < chanCount; j++ ) {
            verify ( pChans[j].getCallbackCount == 1u);
            verify ( pChans[j].connectionUpdateCount > 0 );
            if ( pChans[j].connectionUpdateCount > 1u ) {
                printf ("Unusual connection activity count = %u on channel %s?\n",
                    pChans[j].connectionUpdateCount, pChans[j].name );
            }
            verify ( pChans[j].accessUpdateCount > 0 );
            if ( pChans[j].accessUpdateCount > 1u ) {
                printf ("Unusual access rights activity count = %u on channel %s?\n",
                    pChans[j].connectionUpdateCount, pChans[j].name );
            }
        }

        ca_self_test ();

        showProgress ( interestLevel );

        for ( j = 0u; j < chanCount; j += 2 ) {
            status = ca_clear_event ( pChans[j].subscription );
            SEVCHK ( status, NULL );
        }

        ca_self_test ();

        showProgress ( interestLevel );

        for ( j = 0u; j < chanCount; j++ ) {
            status = ca_replace_access_rights_event (
                    pChans[j].channel, 0 );
            SEVCHK ( status, NULL );
        }

        for ( j = 0u; j < chanCount; j++ ) {
            status = ca_clear_channel ( pChans[j].channel );
            SEVCHK ( status, NULL );
        }

        ca_self_test ();

        showProgress ( interestLevel );

    }
    showProgressEnd ( interestLevel );
}

void verifyConnectWithDisconnectedChannels	(	const char *	pName,
		unsigned	interestLevel
	)

Definition at line 3145 of file acctst.c.

{
    int status;
    chid bogusChan[300];
    chid validChan;
    unsigned i;

    showProgressBegin ( "verifyConnectWithDisconnectedChannels", interestLevel );

    for ( i= 0u; i < NELEMENTS ( bogusChan ); i++ ) {
        char buf[256];
        sprintf ( buf, "aChannelThatShouldNeverNeverNeverExist%u", i );
        status = ca_create_channel ( buf, 0, 0, 0, & bogusChan[i] );
        verify ( status == ECA_NORMAL );
    }

    status = ca_pend_io ( 0.001 );
    verify ( status == ECA_TIMEOUT );

    /* wait a long time for the search interval to increase */
    for ( i= 0u; i < 10; i++ ) {
        epicsThreadSleep ( 1.0 );
        showProgress ( interestLevel );
    }

    status = ca_create_channel ( pName, 0, 0, 0, & validChan );
    verify ( status == ECA_NORMAL );

    /*
     * we should be able to connect to a valid
     * channel within a reasonable delay even
     * though there is one permanently
     * diasconnected channel
     */
    status = ca_pend_io ( timeoutToPendIO );
    verify ( status == ECA_NORMAL );

    status = ca_clear_channel ( validChan );
    verify ( status == ECA_NORMAL );

    for ( i= 0u; i < NELEMENTS ( bogusChan ); i++ ) {
        status = ca_clear_channel ( bogusChan[i] );
        verify ( status == ECA_NORMAL );
    }

    showProgressEnd ( interestLevel );
}

void verifyContextRundownChanStillExist	(	const char *	pName,
		unsigned	interestLevel
	)

Definition at line 3366 of file acctst.c.

{
    chid chan[10000];
    int status;
    unsigned i;

    showProgressBegin ( "verifyContextRundownChanStillExist", interestLevel );

    status = ca_context_create ( ca_disable_preemptive_callback );
    SEVCHK ( status, "context create failed" );

    for ( i = 0; i < NELEMENTS ( chan ); i++ ) {
        status = ca_create_channel  ( pName, 0, 0, 0, & chan[i] );
        /*
         * currently in-memory channels cant be used with this test
         * !!!! FIX ME, FIX ME, FIX ME, FIX ME !!!!
         */
        if ( status == ECA_UNAVAILINSERV ) {
            break;
        }
        SEVCHK ( status, NULL );
    }

    status = ca_pend_io( timeoutToPendIO );
    SEVCHK ( status, "channel connect failed" );

    ca_context_destroy ();

    showProgressEnd ( interestLevel );
}

void verifyContextRundownFlush	(	const char *	pName,
		unsigned	interestLevel
	)

Definition at line 3292 of file acctst.c.

{
    unsigned i;

    showProgressBegin ( "verifyContextRundownFlush", interestLevel );

    for ( i=0u; i < 1000; i++ ) {
        const dbr_double_t stim = i;

        {
            chid chan;
            int status;
            status = ca_context_create ( ca_disable_preemptive_callback );
            SEVCHK ( status, "context create failed" );

            status = ca_create_channel  ( pName, 0, 0, 0, & chan );
            /*
             * currently in-memory channels cant be used with this test
             * !!!! FIX ME, FIX ME, FIX ME, FIX ME !!!!
             */
            if ( status != ECA_UNAVAILINSERV ) {
                SEVCHK ( status, NULL );

                status = ca_pend_io( timeoutToPendIO );
                SEVCHK ( status, "channel connect failed" );

                status = ca_put ( DBR_DOUBLE, chan, & stim );
                SEVCHK ( status, "channel put failed" );

                status = ca_clear_channel ( chan );
                SEVCHK ( status, NULL );
            }
            ca_context_destroy ();
        }

        {
            chid chan;
            int status;
            dbr_double_t resp;
            status = ca_context_create ( ca_disable_preemptive_callback );
            SEVCHK ( status, "context create failed" );

            status = ca_create_channel  ( pName, 0, 0, 0, & chan );
            SEVCHK ( status, NULL );
            /*
             * currently in-memory channels cant be used with this test
             * !!!! FIX ME, FIX ME, FIX ME, FIX ME !!!!
             */
            if ( status != ECA_UNAVAILINSERV ) {
                status = ca_pend_io( timeoutToPendIO );
                SEVCHK ( status, "channel connect failed" );

                status = ca_get ( DBR_DOUBLE, chan, & resp );
                SEVCHK ( status, "channel get failed" );

                status = ca_pend_io ( timeoutToPendIO );
                SEVCHK ( status, "get, pend io failed" );

                verify ( stim == resp );

                status = ca_clear_channel ( chan );
                SEVCHK ( status, NULL );
            }
            ca_context_destroy ();
        }

        if ( i % 100 == 0 ) {
            showProgress ( interestLevel );
        }
    }

    showProgressEnd ( interestLevel );
}

void verifyDataTypeMacros

(

void

)

Definition at line 2187 of file acctst.c.

{
    int type;

    type = dbf_type_to_DBR ( DBF_SHORT );
    verify ( type == DBR_SHORT );
    type = dbf_type_to_DBR_STS ( DBF_SHORT );
    verify ( type == DBR_STS_SHORT );
    type = dbf_type_to_DBR_GR ( DBF_SHORT );
    verify ( type == DBR_GR_SHORT );
    type = dbf_type_to_DBR_CTRL ( DBF_SHORT );
    verify ( type == DBR_CTRL_SHORT );
    type = dbf_type_to_DBR_TIME ( DBF_SHORT );
    verify ( type == DBR_TIME_SHORT );
    verify ( strcmp ( dbr_type_to_text( DBR_SHORT ), "DBR_SHORT" )  == 0 );
    verify ( strcmp ( dbf_type_to_text( DBF_SHORT ), "DBF_SHORT" )  == 0 );
    verify ( dbr_type_is_SHORT ( DBR_SHORT ) );
    verify ( dbr_type_is_valid ( DBR_SHORT ) );
    verify ( dbf_type_is_valid ( DBF_SHORT ) );
    {
        int dataType = -1;
        dbf_text_to_type ( "DBF_SHORT", dataType );
        verify ( dataType == DBF_SHORT );
        dbr_text_to_type ( "DBR_CLASS_NAME", dataType );
        verify ( dataType == DBR_CLASS_NAME );
    }
}

void verifyDisconnect	(	const char *	pName,
		unsigned	interestLevel
	)

Definition at line 3208 of file acctst.c.

{
    int disconnectFlag = 0;
    unsigned count = 0;
    chid chan0;
    chid chan1;
    int status;

    status = ca_create_channel  (
        pName, verifyClearChannelOnDisconnectCallback,
        & disconnectFlag, 0, & chan0 );
    SEVCHK ( status, NULL );

    fprintf ( stdout, "Waiting for test channel to connect." );
    fflush ( stdout );
    do {
        ca_pend_event ( 0.1 );
        if ( count++%50 == 0 ) {
            fprintf ( stdout, "." );
            fflush ( stdout );
        }
    } while ( ca_state ( chan0 ) != cs_conn );
    fprintf ( stdout, "confirmed.\n" );

    /*
     * if its a local channel and will never disconnect
     * then skip the portions of this test that cant be
     * completed.
     */
    if ( ca_get_ioc_connection_count () == 0 ) {
        status = ca_clear_channel ( chan0 );
        SEVCHK ( status, NULL );
        return;
    }

    status = ca_add_exception_event ( noopExceptionCallback, 0 );
    SEVCHK ( status, NULL );

    fprintf ( stdout, "Please force test channel to disconnect." );
    fflush ( stdout );
    do {
        ca_pend_event ( 0.1 );;
        if ( count++%50 == 0 ) {
            fprintf ( stdout, "." );
            fflush ( stdout );
        }
    } while ( ! disconnectFlag );
    fprintf ( stdout, "confirmed.\n" );
    /* channel cleared by disconnect handler */

    status = ca_create_channel  (
        pName, 0, 0, 0, & chan1 );
    SEVCHK ( status, NULL );

    fprintf ( stdout, "Waiting for test channel to connect." );
    fflush ( stdout );
    while ( ca_state ( chan1 ) != cs_conn ) {
        ca_pend_event ( 5.0 );
        fprintf ( stdout, "." );
        fflush ( stdout );
    }
    status = ca_clear_channel ( chan1 );
    SEVCHK ( status, NULL );
    fprintf ( stdout, "confirmed.\n" );

    status = ca_add_exception_event ( 0, 0 );
    SEVCHK ( status, NULL );
}

void verifyHighThroughputRead	(	chid	chan,
		unsigned	interestLevel
	)

Definition at line 1109 of file acctst.c.

{
    int status;
    unsigned i;

    /*
     * verify we dont jam up on many uninterrupted
     * solicitations
     */
    if ( ca_read_access (chan) ) {
        dbr_float_t temp;
        showProgressBegin ( "verifyHighThroughputRead", interestLevel );
        for ( i=0; i<10000; i++ ) {
            status = ca_get ( DBR_FLOAT, chan, &temp );
            SEVCHK ( status ,NULL );
        }
        status = ca_pend_io ( timeoutToPendIO );
        SEVCHK ( status, NULL );
        showProgressEnd ( interestLevel );
    }
    else {
        printf ( "Skipped highthroughput read test - no read access\n" );
    }
}

void verifyHighThroughputReadCallback	(	chid	chan,
		unsigned	interestLevel
	)

Definition at line 1158 of file acctst.c.

{
    unsigned i;
    int status;

    if ( ca_read_access ( chan ) ) {
        unsigned count = 0u;
        showProgressBegin ( "verifyHighThroughputReadCallback", interestLevel );
        for ( i=0; i<10000; i++ ) {
            status = ca_array_get_callback (
                    DBR_FLOAT, 1, chan, nUpdatesTester, &count );
            SEVCHK ( status, NULL );
        }
        SEVCHK ( ca_flush_io (), NULL );
        while ( count < 10000u ) {
            epicsThreadSleep ( 0.1 );
            ca_poll (); /* emulate typical GUI */
        }
        showProgressEnd ( interestLevel );
    }
    else {
        printf ( "Skipped multiple get cb test - no read access\n" );
    }
}

void verifyHighThroughputWrite	(	chid	chan,
		unsigned	interestLevel
	)

Definition at line 1134 of file acctst.c.

{
    int status;
    unsigned i;

    if (ca_write_access ( chan ) ) {
        showProgressBegin ( "verifyHighThroughputWrite", interestLevel );
        for ( i=0; i<10000; i++ ) {
            dbr_double_t fval = 3.3;
            status = ca_put ( DBR_DOUBLE, chan, &fval );
            SEVCHK ( status, NULL );
        }
        SEVCHK ( ca_pend_io (timeoutToPendIO), NULL );
        showProgressEnd ( interestLevel );
    }
    else{
        printf("Skipped multiple put test - no write access\n");
    }
}

void verifyHighThroughputWriteCallback	(	chid	chan,
		unsigned	interestLevel
	)

Definition at line 1187 of file acctst.c.

{
    unsigned i;
    int status;

    if ( ca_write_access (chan) && ca_v42_ok (chan) ) {
        unsigned count = 0u;
        dbr_double_t dval;
        showProgressBegin ( "verifyHighThroughputWriteCallback", interestLevel );
        for ( i=0; i<10000; i++ ) {
            dval = i + 1;
            status = ca_array_put_callback (
                    DBR_DOUBLE, 1, chan, &dval,
                    nUpdatesTester, &count );
            SEVCHK ( status, NULL );
        }
        SEVCHK ( ca_flush_io (), NULL );
        dval = 0.0;
        status = ca_get ( DBR_DOUBLE, chan, &dval );
        SEVCHK ( status,
            "verifyHighThroughputWriteCallback, verification get" );
        status = ca_pend_io ( timeoutToPendIO );
        SEVCHK ( status,
            "verifyHighThroughputWriteCallback, verification get pend" );
        verify ( dval == i );
        showProgressEnd ( interestLevel );
    }
    else {
        printf ( "Skipped multiple put cb test - no write access\n" );
    }
}

void verifyImmediateTearDown	(	const char *	pName,
		enum ca_preemptive_callback_select	select,
		unsigned	interestLevel
	)

Definition at line 2801 of file acctst.c.

{
    int i;

    showProgressBegin ( "verifyImmediateTearDown", interestLevel );

    for ( i = 0u; i < 100; i++ ) {
        chid chan;
        int status;
        dbr_long_t value = i % 8;
        ca_context_create ( select );
        ca_task_initialize ();
        status = ca_create_channel ( pName, 0, 0, 0, & chan );
        SEVCHK ( status, "immediate tear down channel create failed" );
        status = ca_pend_io ( timeoutToPendIO );
        SEVCHK ( status, "immediate tear down channel connect failed" );
        verify ( status == ECA_NORMAL );
        /*
         * verify that puts pending when we call ca_task_exit()
         * get flushed out
         */
        if ( i > 0 ) {
            dbr_long_t currentValue = value;
            status = ca_get ( DBR_LONG, chan, & currentValue );
            SEVCHK ( status, "immediate tear down channel get failed" );
            status = ca_pend_io ( timeoutToPendIO );
            SEVCHK ( status, "immediate tear down channel get failed" );
            if ( currentValue != ( (i - 1) % 8 ) ) {
                printf ( "currentValue = %i, i = %i\n", currentValue, i );
                verify ( currentValue == ( (i - 1) % 8 ) );
            }
        }
        status = ca_put ( DBR_LONG, chan, & value );
        SEVCHK ( status, "immediate tear down channel put failed" );
        status = ca_clear_channel ( chan );
        SEVCHK ( status, "immediate tear down channel clear failed" );
        ca_context_destroy ();
        /* epicsThreadSleep ( 1e-15 ); */
        if ( i % 10 == 0 ) {
            showProgress ( interestLevel );
        }
    }

    ca_context_create ( select );

    showProgressEnd ( interestLevel );
}

void verifyLongIO	(	chid	chan,
		unsigned	interestLevel
	)

Definition at line 1025 of file acctst.c.

{
    int status;

    dbr_long_t iter, rdbk, incr;
    struct dbr_ctrl_long cl;

    if ( ca_write_access ( chan ) ) {
        return;
    }

    status = ca_get ( DBR_CTRL_LONG, chan, &cl );
    SEVCHK ( status, "control long fetch failed\n" );
    status = ca_pend_io ( timeoutToPendIO );
    SEVCHK ( status, "control long pend failed\n" );

    incr = ( cl.upper_ctrl_limit - cl.lower_ctrl_limit );
    if ( incr >= 1 ) {
        showProgressBegin ( "verifyLongIO", interestLevel );
        incr /= 1000;
        if ( incr == 0 ) {
            incr = 1;
        }
        for ( iter = cl.lower_ctrl_limit;
            iter <= cl.upper_ctrl_limit; iter+=incr ) {

            ca_put ( DBR_LONG, chan, &iter );
            ca_get ( DBR_LONG, chan, &rdbk );
            status = ca_pend_io ( timeoutToPendIO );
            SEVCHK ( status, "get pend failed\n" );
            verify ( iter == rdbk );
        }
        showProgressEnd ( interestLevel );
    }
    else {
        printf ( "strange limits configured for channel \"%s\"\n", ca_name (chan) );
    }
}

void verifyMonitorSubscriptionFlushIO	(	chid	chan,
		unsigned	interestLevel
	)

Definition at line 271 of file acctst.c.

{
    int status;
    unsigned eventCount = 0u;
    unsigned waitCount = 0u;
    evid id;

    showProgressBegin ( "verifyMonitorSubscriptionFlushIO", interestLevel );

    /*
     * verify that the first event arrives
     */
    status = ca_add_event ( DBR_FLOAT,
                chan, nUpdatesTester, &eventCount, &id );
    SEVCHK (status, 0);
    ca_flush_io ();
    epicsThreadSleep ( 0.1 );
    ca_poll ();
    while ( eventCount < 1 && waitCount++ < 100 ) {
        printf ( "-" );
        fflush ( stdout );
        epicsThreadSleep ( 0.1 );
        ca_poll (); /* emulate typical GUI */
    }
    verify ( eventCount > 0 );
    status = ca_clear_event ( id );
    SEVCHK (status, 0);

    showProgressEnd ( interestLevel );
}

void verifyMultithreadSubscr	(	const char *	pName,
		unsigned	interestLevel
	)

Definition at line 3022 of file acctst.c.

{
    static unsigned nSubscr = 3000;
    epicsThreadId threadId;
    MultiThreadSubscrTest * const pMultiThreadSubscrTest =
                                (MultiThreadSubscrTest*) calloc ( 1,
                                    sizeof ( MultiThreadSubscrTest ) );
    verify ( pMultiThreadSubscrTest);
    pMultiThreadSubscrTest->m_mutex = epicsMutexMustCreate ();
    verify ( pMultiThreadSubscrTest->m_mutex );
    pMultiThreadSubscrTest->m_testCompleteEvent =
                epicsEventMustCreate ( epicsEventEmpty );
    verify ( pMultiThreadSubscrTest->m_testCompleteEvent );
    pMultiThreadSubscrTest->m_threadExitEvent =
                epicsEventMustCreate ( epicsEventEmpty );
    verify ( pMultiThreadSubscrTest->m_threadExitEvent );
    strncpy ( pMultiThreadSubscrTest->m_chanName, pName,
            sizeof ( pMultiThreadSubscrTest->m_chanName ) );
    pMultiThreadSubscrTest->m_chanName
        [ sizeof ( pMultiThreadSubscrTest->m_chanName ) - 1u ] = '\0';
    pMultiThreadSubscrTest->m_nUpdatesRequired = nSubscr;
    pMultiThreadSubscrTest->m_interestLevel = interestLevel;
    threadId = epicsThreadCreate (
                "testMultithreadSubscr",
                epicsThreadPriorityMedium,
                epicsThreadGetStackSize(epicsThreadStackSmall),
                testMultithreadSubscr, pMultiThreadSubscrTest );
    verify ( threadId );
    {
        epicsEventWaitStatus eventWaitStatus;
        eventWaitStatus = epicsEventWaitWithTimeout (
                pMultiThreadSubscrTest->m_threadExitEvent, 1000.0 );
        verify  ( eventWaitStatus == epicsEventWaitOK );
    }
    epicsEventDestroy ( pMultiThreadSubscrTest->m_testCompleteEvent );
    epicsEventDestroy ( pMultiThreadSubscrTest->m_threadExitEvent );
    epicsMutexDestroy ( pMultiThreadSubscrTest->m_mutex );
    free ( pMultiThreadSubscrTest );
}

void verifyName	(	const char *	pName,
		unsigned	interestLevel
	)

Definition at line 3278 of file acctst.c.

{
    chid chan;
    int status = ca_create_channel  (
                    pName, 0, 0, 0, & chan );
    SEVCHK ( status, NULL );
    if ( strcmp ( pName, ca_name ( chan ) ) != 0 ) {
        printf ( "Canonical name for channel was \"%s\"\n", ca_name ( chan ) );
    }
    status = ca_clear_channel ( chan );
    SEVCHK ( status, NULL );
}

void verifyOldPend

(

unsigned

interestLevel

)

Definition at line 2628 of file acctst.c.

{
    int status;

    showProgressBegin ( "verifyOldPend", interestLevel );

    /*
     * verify that the old ca_pend() is in the symbol table
     */
    status = ca_pend ( 100000.0, 1 );
    verify ( status == ECA_NORMAL );
    status = ca_pend ( 1e-12, 0 );
    verify ( status == ECA_TIMEOUT );

    showProgressEnd ( interestLevel );
}

void verifyReasonableBeaconPeriod	(	chid	chan,
		unsigned	interestLevel
	)

Definition at line 2583 of file acctst.c.

{
    if ( ca_get_ioc_connection_count () > 0 ) {
        double beaconPeriod;
        double watchDogDelay;
        unsigned i;

        showProgressBegin ( "verifyReasonableBeaconPeriod", interestLevel );


        printf ( "Beacon anomalies detected since program start %u\n",
            ca_beacon_anomaly_count () );

        beaconPeriod = ca_beacon_period ( chan );
        printf ( "Estimated beacon period for channel %s = %g sec.\n",
            ca_name ( chan ), beaconPeriod );

        watchDogDelay = ca_receive_watchdog_delay ( chan );
        verify ( watchDogDelay >= 0.0 );

        printf ( "busy: receive watchdog for \"%s\" expires in %g sec.\n",
            ca_name ( chan ), watchDogDelay );

        /*
         * let one default connection timeout go by w/o receive activity
         * so we can see if beacons reset the watchdog
         */
        for ( i = 0u; i < 15u; i++ ) {
            ca_pend_event ( 2.0 );
            showProgress ( interestLevel );
        }
        if ( interestLevel > 0 ) {
            printf ( "\n" );
        }

        watchDogDelay = ca_receive_watchdog_delay ( chan );
        verify ( watchDogDelay >= 0.0 );

        printf ( "inactive: receive watchdog for \"%s\" expires in %g sec.\n",
            ca_name ( chan ), watchDogDelay );

        showProgressEnd ( interestLevel );
    }
}

void verifyShortIO	(	chid	chan,
		unsigned	interestLevel
	)

Definition at line 1068 of file acctst.c.

{
    int status;

    dbr_short_t iter, rdbk, incr;
    struct dbr_ctrl_short cl;

    if ( ca_write_access ( chan ) ) {
        return;
    }

    status = ca_get ( DBR_CTRL_SHORT, chan, &cl );
    SEVCHK ( status, "control short fetch failed\n" );
    status = ca_pend_io ( timeoutToPendIO );
    SEVCHK ( status, "control short pend failed\n" );

    incr = (dbr_short_t) ( cl.upper_ctrl_limit - cl.lower_ctrl_limit );
    if ( incr >= 1 ) {
        showProgressBegin ( "verifyShortIO", interestLevel );

        incr /= 1000;
        if ( incr == 0 ) {
            incr = 1;
        }
        for ( iter = (dbr_short_t) cl.lower_ctrl_limit;
            iter <= (dbr_short_t) cl.upper_ctrl_limit;
            iter = (dbr_short_t) (iter + incr) ) {

            ca_put ( DBR_SHORT, chan, &iter );
            ca_get ( DBR_SHORT, chan, &rdbk );
            status = ca_pend_io ( timeoutToPendIO );
            SEVCHK ( status, "get pend failed\n" );
            verify ( iter == rdbk );
        }
        showProgressEnd ( interestLevel );
    }
    else {
        printf ( "Strange limits configured for channel \"%s\"\n", ca_name (chan) );
    }
}

void verifyTearDownWhenChannelConnected	(	const char *	pName,
		enum ca_preemptive_callback_select	select,
		unsigned	interestLevel
	)

Definition at line 2754 of file acctst.c.

{
    static const unsigned chanCount = 20;
    static const unsigned loopCount = 100;

    chid * const pChans = (chid * const) calloc ( chanCount, sizeof ( *pChans ) );
    double * const pValues = (double * const) calloc ( chanCount, sizeof ( *pValues ) );
    unsigned i, j;

    verify ( pChans && pValues );

    showProgressBegin ( "verifyTearDownWhenChannelConnected", interestLevel );

    for ( i = 0u; i < loopCount; i++ ) {
        int status;
        ca_context_create ( select );

        for ( j = 0; j < chanCount; j++ ) {
            status = ca_create_channel ( pName, 0, 0, 0, & pChans[j] );
            SEVCHK ( status, "immediate tear down channel create failed" );
        }
        status = ca_pend_io ( timeoutToPendIO );
        SEVCHK ( status, "immediate tear down channel connect failed" );
        verify ( status == ECA_NORMAL );

        for ( j = 0; j < chanCount; j++ ) {
            status = ca_get ( DBR_DOUBLE, pChans[j], &pValues[j] );
            SEVCHK ( status, "immediate tear down channel get failed" );
        }

        status = ca_pend_io ( timeoutToPendIO );
        SEVCHK ( status, "immediate tear down get pend io failed" );

        ca_context_destroy ();
    }

    ca_context_create ( select );

    free ( pChans );
    free ( pValues );

    showProgressEnd ( interestLevel );
}

void verifyTimeStamps	(	chid	chan,
		unsigned	interestLevel
	)

Definition at line 2645 of file acctst.c.

{
    struct dbr_time_double first;
    struct dbr_time_double last;
    epicsTimeStamp localTime;
    char buf[128];
    size_t length;
    double diff;
    int status;

    showProgressBegin ( "verifyTimeStamps", interestLevel );

    status = epicsTimeGetCurrent ( & localTime );
    verify ( status >= 0 );

    status = ca_get ( DBR_TIME_DOUBLE, chan, & first );
    SEVCHK ( status, "fetch of dbr time double failed\n" );
    status = ca_pend_io ( timeoutToPendIO );
    verify ( status == ECA_NORMAL );

    status = ca_get ( DBR_TIME_DOUBLE, chan, & last );
    SEVCHK ( status, "fetch of dbr time double failed\n" );
    status = ca_pend_io ( timeoutToPendIO );
    verify ( status == ECA_NORMAL );

    length = epicsTimeToStrftime ( buf, sizeof ( buf ),
        "%a %b %d %Y %H:%M:%S.%f", & first.stamp );
    verify ( length );
    printf ("Processing time of channel \"%s\" was \"%s\"\n",
        ca_name ( chan ), buf );

    diff = epicsTimeDiffInSeconds ( & last.stamp, & first.stamp );
    printf ("Time difference between two successive reads was %g sec\n",
        diff );

    diff = epicsTimeDiffInSeconds ( & first.stamp, & localTime );
    printf ("Time difference between client and server %g sec\n",
        diff );

    showProgressEnd ( interestLevel );
}

Variable Documentation

unsigned accessUpdateCount

Definition at line 57 of file acctst.c.

unsigned acctstExceptionCount = 0u

Definition at line 1730 of file acctst.c.

unsigned connectionUpdateCount

Definition at line 58 of file acctst.c.

unsigned getCallbackCount

Definition at line 59 of file acctst.c.

evid globalEventID

Definition at line 1676 of file acctst.c.

unsigned subscriptionUpdateCount

Definition at line 56 of file acctst.c.
