pvas::detail::SharedRPC Struct Reference

#include "sharedstateimpl.h"

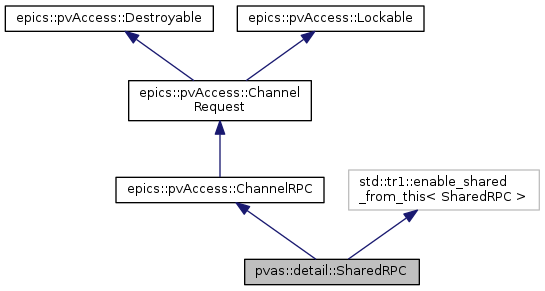

Inheritance diagram for pvas::detail::SharedRPC:

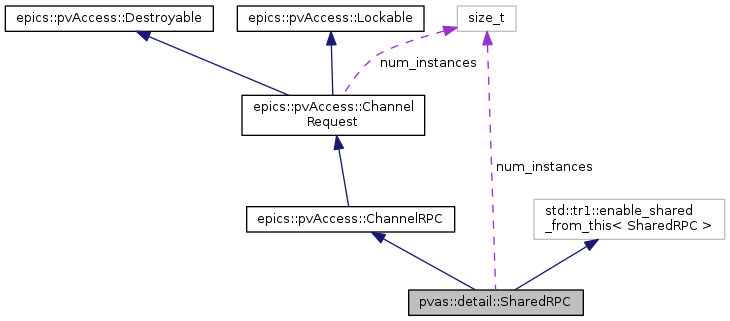

Collaboration diagram for pvas::detail::SharedRPC:

Public Member Functions
	SharedRPC (const std::tr1::shared_ptr< SharedChannel > &channel, const requester_type::shared_pointer &requester, const pvd::PVStructure::const_shared_pointer &pvRequest)
virtual	~SharedRPC ()
virtual void	destroy () OVERRIDE FINAL
virtual std::tr1::shared_ptr< pva::Channel >	getChannel () OVERRIDE FINAL
virtual void	cancel () OVERRIDE FINAL
virtual void	lastRequest () OVERRIDE FINAL
virtual void	request (epics::pvData::PVStructure::shared_pointer const &pvArgument) OVERRIDE FINAL
Public Member Functions inherited from epics::pvAccess::ChannelRPC
	POINTER_DEFINITIONS (ChannelRPC)
virtual	~ChannelRPC ()
Public Member Functions inherited from epics::pvAccess::ChannelRequest
	POINTER_DEFINITIONS (ChannelRequest)
	ChannelRequest ()
virtual	~ChannelRequest ()
Public Member Functions inherited from epics::pvAccess::Destroyable
	POINTER_DEFINITIONS (Destroyable)
Public Member Functions inherited from epics::pvAccess::Lockable
	POINTER_DEFINITIONS (Lockable)
virtual	~Lockable ()
virtual void	lock ()
virtual void	unlock ()

Public Attributes
const std::tr1::shared_ptr< SharedChannel >	channel
const requester_type::weak_pointer	requester
const pvd::PVStructure::const_shared_pointer	pvRequest
bool	connected

Static Public Attributes
static size_t	num_instances
Static Public Attributes inherited from epics::pvAccess::ChannelRequest
static size_t	num_instances

Additional Inherited Members
Public Types inherited from epics::pvAccess::ChannelRPC
typedef ChannelRPCRequester	requester_type
Protected Member Functions inherited from epics::pvAccess::Destroyable
virtual	~Destroyable ()

Detailed Description

Definition at line 105 of file sharedstateimpl.h.

Constructor & Destructor Documentation

pvas::detail::SharedRPC::SharedRPC	(	const std::tr1::shared_ptr< SharedChannel > &	channel,
		const requester_type::shared_pointer &	requester,
		const pvd::PVStructure::const_shared_pointer &	pvRequest
	)

Definition at line 86 of file sharedstate_rpc.cpp.

    :channel(channel)
    ,requester(requester)
    ,pvRequest(pvRequest)
    ,connected(false)
{
    REFTRACE_INCREMENT(num_instances);
}

pvas::detail::SharedRPC::~SharedRPC ( )

virtual

Definition at line 97 of file sharedstate_rpc.cpp.

                      {
    Guard G(channel->owner->mutex);
    channel->owner->rpcs.remove(this);
    REFTRACE_DECREMENT(num_instances);
}

Member Function Documentation

void pvas::detail::SharedRPC::cancel ( )

virtual

Cancel any pending request. Completion will be reported via request's response callback:

• if cancel() request is issued after the request was already complete, request success/failure completion will be reported and cancel() request ignored.
• if the request was actually canceled, cancellation completion is reported.

Implements epics::pvAccess::ChannelRequest.

Definition at line 110 of file sharedstate_rpc.cpp.

{}

void pvas::detail::SharedRPC::destroy ( )

virtual

Destroy this instance.

Implements epics::pvAccess::Destroyable.

Definition at line 103 of file sharedstate_rpc.cpp.

{}

std::tr1::shared_ptr< pva::Channel > pvas::detail::SharedRPC::getChannel ( )

virtual

Get a channel instance this request belongs to.

Returns

the channel instance.

Implements epics::pvAccess::ChannelRequest.

Definition at line 105 of file sharedstate_rpc.cpp.

{
    return channel;
}

void pvas::detail::SharedRPC::lastRequest ( )

virtual

Announce next request as last request. When last request will be completed (regardless of completion status) the remote and local instance will be destroyed.

Implements epics::pvAccess::ChannelRequest.

Definition at line 112 of file sharedstate_rpc.cpp.

{}

void pvas::detail::SharedRPC::request ( epics::pvData::PVStructure::shared_pointer const &  pvArgument )

virtual

Issue an RPC request to the channel.

Completion status is reported by calling ChannelRPCRequester::requestDone() callback, which may be called from this method.

Precondition

The underlying Channel must be connected, and this ChannelRPC valid. Otherwise the ChannelRPCRequester::requestDone() is called with an error.

Postcondition

After calling request(), the requestDone() callback will be called at some later time. May call ChannelRPC::cancel() to request to abort() this operation.

Parameters

pvArgument

The argument structure for an RPC request.

Implements epics::pvAccess::ChannelRPC.

Definition at line 114 of file sharedstate_rpc.cpp.

{
    std::tr1::shared_ptr<SharedPV::Handler> handler;
    pvd::Status sts;
    {
        Guard G(channel->owner->mutex);
        if(channel->dead) {
            sts = pvd::Status::error("Dead Channel");

        } else {
            handler = channel->owner->handler;
        }
    }

    if(!sts.isOK()) {
        requester_type::shared_pointer req(requester.lock());
        if(req)
            req->requestDone(sts, shared_from_this(), pvd::PVStructurePtr());

    } else {
        std::tr1::shared_ptr<RPCOP> impl(new RPCOP(shared_from_this(), pvRequest, pvArgument),
                                         Operation::Impl::Cleanup());

        if(handler) {
            Operation op(impl);
            handler->onRPC(channel->owner, op);
        }
    }
}

Member Data Documentation

const std::tr1::shared_ptr<SharedChannel> pvas::detail::SharedRPC::channel

Definition at line 108 of file sharedstateimpl.h.

bool pvas::detail::SharedRPC::connected

Definition at line 114 of file sharedstateimpl.h.

size_t pvas::detail::SharedRPC::num_instances

static

Definition at line 112 of file sharedstateimpl.h.

const pvd::PVStructure::const_shared_pointer pvas::detail::SharedRPC::pvRequest

Definition at line 110 of file sharedstateimpl.h.

const requester_type::weak_pointer pvas::detail::SharedRPC::requester

Definition at line 109 of file sharedstateimpl.h.

---

The documentation for this struct was generated from the following files:

• modules/pvAccess/src/server/sharedstateimpl.h
• modules/pvAccess/src/server/sharedstate_rpc.cpp
