tblcmp.c File Reference

#include "flexdef.h"

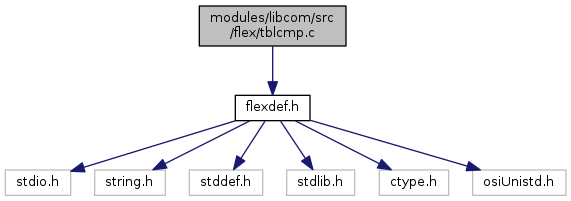

Include dependency graph for tblcmp.c:

Go to the source code of this file.

Functions
void	mkentry (int *, int, int, int, int)
void	mkprot (int[], int, int)
void	mktemplate (int[], int, int)
void	mv2front (int)
int	tbldiff (int[], int, int[])
void	bldtbl (int *state, int statenum, int totaltrans, int comstate, int comfreq)
void	cmptmps (void)
void	expand_nxt_chk (void)
int	find_table_space (int *state, int numtrans)
void	inittbl (void)
void	mkdeftbl (void)
void	mk1tbl (int state, int sym, int onenxt, int onedef)
void	mkprot (int *state, int statenum, int comstate)
void	mktemplate (int *state, int statenum, int comstate)
void	place_state (int *state, int statenum, int transnum)
void	stack1 (int statenum, int sym, int nextstate, int deflink)
int	tbldiff (int *state, int pr, int *ext)

Function Documentation

void bldtbl	(	int *	state,
		int	statenum,
		int	totaltrans,
		int	comstate,
		int	comfreq
	)

Definition at line 84 of file tblcmp.c.

{
    int extptr, extrct[2][CSIZE + 1];
    int mindiff, minprot, i, d;
    int checkcom;

    /* If extptr is 0 then the first array of extrct holds the result of the
     * "best difference" to date, which is those transitions which occur in
     * "state" but not in the proto which, to date, has the fewest differences
     * between itself and "state".  If extptr is 1 then the second array of
     * extrct hold the best difference.  The two arrays are toggled
     * between so that the best difference to date can be kept around and
     * also a difference just created by checking against a candidate "best"
     * proto.
     */

    extptr = 0;

    /* if the state has too few out-transitions, don't bother trying to
     * compact its tables
     */

    if ( (totaltrans * 100) < (numecs * PROTO_SIZE_PERCENTAGE) )
        mkentry( state, numecs, statenum, JAMSTATE, totaltrans );

    else
        {
        /* checkcom is true if we should only check "state" against
         * protos which have the same "comstate" value
         */

        checkcom = comfreq * 100 > totaltrans * CHECK_COM_PERCENTAGE;

        minprot = firstprot;
        mindiff = totaltrans;

        if ( checkcom )
            {
            /* find first proto which has the same "comstate" */
            for ( i = firstprot; i != NIL; i = protnext[i] )
                if ( protcomst[i] == comstate )
                    {
                    minprot = i;
                    mindiff = tbldiff( state, minprot, extrct[extptr] );
                    break;
                    }
            }

        else
            {
            /* since we've decided that the most common destination out
             * of "state" does not occur with a high enough frequency,
             * we set the "comstate" to zero, assuring that if this state
             * is entered into the proto list, it will not be considered
             * a template.
             */
            comstate = 0;

            if ( firstprot != NIL )
                {
                minprot = firstprot;
                mindiff = tbldiff( state, minprot, extrct[extptr] );
                }
            }

        /* we now have the first interesting proto in "minprot".  If
         * it matches within the tolerances set for the first proto,
         * we don't want to bother scanning the rest of the proto list
         * to see if we have any other reasonable matches.
         */

        if ( mindiff * 100 > totaltrans * FIRST_MATCH_DIFF_PERCENTAGE )
            { /* not a good enough match.  Scan the rest of the protos */
            for ( i = minprot; i != NIL; i = protnext[i] )
                {
                d = tbldiff( state, i, extrct[1 - extptr] );
                if ( d < mindiff )
                    {
                    extptr = 1 - extptr;
                    mindiff = d;
                    minprot = i;
                    }
                }
            }

        /* check if the proto we've decided on as our best bet is close
         * enough to the state we want to match to be usable
         */

        if ( mindiff * 100 > totaltrans * ACCEPTABLE_DIFF_PERCENTAGE )
            {
            /* no good.  If the state is homogeneous enough, we make a
             * template out of it.  Otherwise, we make a proto.
             */

            if ( comfreq * 100 >= totaltrans * TEMPLATE_SAME_PERCENTAGE )
                mktemplate( state, statenum, comstate );

            else
                {
                mkprot( state, statenum, comstate );
                mkentry( state, numecs, statenum, JAMSTATE, totaltrans );
                }
            }

        else
            { /* use the proto */
            mkentry( extrct[extptr], numecs, statenum,
                     prottbl[minprot], mindiff );

            /* if this state was sufficiently different from the proto
             * we built it from, make it, too, a proto
             */

            if ( mindiff * 100 >= totaltrans * NEW_PROTO_DIFF_PERCENTAGE )
                mkprot( state, statenum, comstate );

            /* since mkprot added a new proto to the proto queue, it's possible
             * that "minprot" is no longer on the proto queue (if it happened
             * to have been the last entry, it would have been bumped off).
             * If it's not there, then the new proto took its physical place
             * (though logically the new proto is at the beginning of the
             * queue), so in that case the following call will do nothing.
             */

            mv2front( minprot );
            }
        }
    }

void cmptmps

(

void

)

Definition at line 228 of file tblcmp.c.

{
    int tmpstorage[CSIZE + 1];
    int *tmp = tmpstorage, i, j;
    int totaltrans, trans;

    peakpairs = numtemps * numecs + tblend;

    if ( usemecs )
        {
        /* create equivalence classes base on data gathered on template
         * transitions
         */

        nummecs = cre8ecs( tecfwd, tecbck, numecs );
        }

    else
        nummecs = numecs;

    if ( lastdfa + numtemps + 1 >= current_max_dfas )
        increase_max_dfas();

    /* loop through each template */

    for ( i = 1; i <= numtemps; ++i )
        {
        totaltrans = 0; /* number of non-jam transitions out of this template */

        for ( j = 1; j <= numecs; ++j )
            {
            trans = tnxt[numecs * i + j];

            if ( usemecs )
                {
                /* the absolute value of tecbck is the meta-equivalence class
                 * of a given equivalence class, as set up by cre8ecs
                 */
                if ( tecbck[j] > 0 )
                    {
                    tmp[tecbck[j]] = trans;

                    if ( trans > 0 )
                        ++totaltrans;
                    }
                }

            else
                {
                tmp[j] = trans;

                if ( trans > 0 )
                    ++totaltrans;
                }
            }

        /* it is assumed (in a rather subtle way) in the skeleton that
         * if we're using meta-equivalence classes, the def[] entry for
         * all templates is the jam template, i.e., templates never default
         * to other non-jam table entries (e.g., another template)
         */

        /* leave room for the jam-state after the last real state */
        mkentry( tmp, nummecs, lastdfa + i + 1, JAMSTATE, totaltrans );
        }
    }

void expand_nxt_chk

(

void

)

Definition at line 299 of file tblcmp.c.

{
    int old_max = current_max_xpairs;

    current_max_xpairs += MAX_XPAIRS_INCREMENT;

    ++num_reallocs;

    nxt = reallocate_integer_array( nxt, current_max_xpairs );
    chk = reallocate_integer_array( chk, current_max_xpairs );

    memset( (char *) (chk + old_max), 0,
           MAX_XPAIRS_INCREMENT * sizeof( int ) / sizeof( char ) );
    }

int find_table_space	(	int *	state,
		int	numtrans
	)

Definition at line 334 of file tblcmp.c.

{
    /* firstfree is the position of the first possible occurrence of two
     * consecutive unused records in the chk and nxt arrays
     */
    int i;
    int *state_ptr, *chk_ptr;
    int *ptr_to_last_entry_in_state;

    /* if there are too many out-transitions, put the state at the end of
     * nxt and chk
     */
    if ( numtrans > MAX_XTIONS_FULL_INTERIOR_FIT )
        {
        /* if table is empty, return the first available spot in chk/nxt,
         * which should be 1
         */
        if ( tblend < 2 )
            return ( 1 );

        i = tblend - numecs;    /* start searching for table space near the
                                 * end of chk/nxt arrays
                                 */
        }

    else
        i = firstfree;          /* start searching for table space from the
                                 * beginning (skipping only the elements
                                 * which will definitely not hold the new
                                 * state)
                                 */

    while ( 1 )         /* loops until a space is found */
        {
        if ( i + numecs > current_max_xpairs )
            expand_nxt_chk();

        /* loops until space for end-of-buffer and action number are found */
        while ( 1 )
            {
            if ( chk[i - 1] == 0 )      /* check for action number space */
                {
                if ( chk[i] == 0 )      /* check for end-of-buffer space */
                    break;

                else
                    i += 2;     /* since i != 0, there is no use checking to
                                 * see if (++i) - 1 == 0, because that's the
                                 * same as i == 0, so we skip a space
                                 */
                }

            else
                ++i;

            if ( i + numecs > current_max_xpairs )
                expand_nxt_chk();
            }

        /* if we started search from the beginning, store the new firstfree for
         * the next call of find_table_space()
         */
        if ( numtrans <= MAX_XTIONS_FULL_INTERIOR_FIT )
            firstfree = i + 1;

        /* check to see if all elements in chk (and therefore nxt) that are
         * needed for the new state have not yet been taken
         */

        state_ptr = &state[1];
        ptr_to_last_entry_in_state = &chk[i + numecs + 1];

        for ( chk_ptr = &chk[i + 1]; chk_ptr != ptr_to_last_entry_in_state;
              ++chk_ptr )
            if ( *(state_ptr++) != 0 && *chk_ptr != 0 )
                break;

        if ( chk_ptr == ptr_to_last_entry_in_state )
            return ( i );

        else
            ++i;
        }
    }

void inittbl

(

void

)

Definition at line 430 of file tblcmp.c.

{
    int i;

    memset( (char *) chk, 0,
           current_max_xpairs * sizeof( int ) / sizeof( char ) );

    tblend = 0;
    firstfree = tblend + 1;
    numtemps = 0;

    if ( usemecs )
        {
        /* set up doubly-linked meta-equivalence classes
         * these are sets of equivalence classes which all have identical
         * transitions out of TEMPLATES
         */

        tecbck[1] = NIL;

        for ( i = 2; i <= numecs; ++i )
            {
            tecbck[i] = i - 1;
            tecfwd[i - 1] = i;
            }

        tecfwd[numecs] = NIL;
        }
    }

void mk1tbl	(	int	state,
		int	sym,
		int	onenxt,
		int	onedef
	)

Definition at line 647 of file tblcmp.c.

{
    if ( firstfree < sym )
        firstfree = sym;

    while ( chk[firstfree] != 0 )
        if ( ++firstfree >= current_max_xpairs )
            expand_nxt_chk();

    base[state] = firstfree - sym;
    def[state] = onedef;
    chk[firstfree] = state;
    nxt[firstfree] = onenxt;

    if ( firstfree > tblend )
        {
        tblend = firstfree++;

        if ( firstfree >= current_max_xpairs )
            expand_nxt_chk();
        }
    }

void mkdeftbl

(

void

)

Definition at line 467 of file tblcmp.c.

{
    int i;

    jamstate = lastdfa + 1;

    ++tblend; /* room for transition on end-of-buffer character */

    if ( tblend + numecs > current_max_xpairs )
        expand_nxt_chk();

    /* add in default end-of-buffer transition */
    nxt[tblend] = end_of_buffer_state;
    chk[tblend] = jamstate;

    for ( i = 1; i <= numecs; ++i )
        {
        nxt[tblend + i] = 0;
        chk[tblend + i] = jamstate;
        }

    jambase = tblend;

    base[jamstate] = jambase;
    def[jamstate] = 0;

    tblend += numecs;
    ++numtemps;
    }

void mkentry	(	int *	state,
		int	numchars,
		int	statenum,
		int	deflink,
		int	totaltrans
	)

Definition at line 517 of file tblcmp.c.

{
    int minec, maxec, i, baseaddr;
    int tblbase, tbllast;

    if ( totaltrans == 0 )
        { /* there are no out-transitions */
        if ( deflink == JAMSTATE )
            base[statenum] = JAMSTATE;
        else
            base[statenum] = 0;

        def[statenum] = deflink;
        return;
        }

    for ( minec = 1; minec <= numchars; ++minec )
        {
        if ( state[minec] != SAME_TRANS )
            if ( state[minec] != 0 || deflink != JAMSTATE )
                break;
        }

    if ( totaltrans == 1 )
        {
        /* there's only one out-transition.  Save it for later to fill
         * in holes in the tables.
         */
        stack1( statenum, minec, state[minec], deflink );
        return;
        }

    for ( maxec = numchars; maxec > 0; --maxec )
        {
        if ( state[maxec] != SAME_TRANS )
            if ( state[maxec] != 0 || deflink != JAMSTATE )
                break;
        }

    /* Whether we try to fit the state table in the middle of the table
     * entries we have already generated, or if we just take the state
     * table at the end of the nxt/chk tables, we must make sure that we
     * have a valid base address (i.e., non-negative).  Note that not only are
     * negative base addresses dangerous at run-time (because indexing the
     * next array with one and a low-valued character might generate an
     * array-out-of-bounds error message), but at compile-time negative
     * base addresses denote TEMPLATES.
     */

    /* find the first transition of state that we need to worry about. */
    if ( totaltrans * 100 <= numchars * INTERIOR_FIT_PERCENTAGE )
        { /* attempt to squeeze it into the middle of the tabls */
        baseaddr = firstfree;

        while ( baseaddr < minec )
            {
            /* using baseaddr would result in a negative base address below
             * find the next free slot
             */
            for ( ++baseaddr; chk[baseaddr] != 0; ++baseaddr )
                ;
            }

        if ( baseaddr + maxec - minec >= current_max_xpairs )
            expand_nxt_chk();

        for ( i = minec; i <= maxec; ++i )
            if ( state[i] != SAME_TRANS )
                if ( state[i] != 0 || deflink != JAMSTATE )
                    if ( chk[baseaddr + i - minec] != 0 )
                        { /* baseaddr unsuitable - find another */
                        for ( ++baseaddr;
                              baseaddr < current_max_xpairs &&
                              chk[baseaddr] != 0;
                              ++baseaddr )
                            ;

                        if ( baseaddr + maxec - minec >= current_max_xpairs )
                            expand_nxt_chk();

                        /* reset the loop counter so we'll start all
                         * over again next time it's incremented
                         */

                        i = minec - 1;
                        }
        }

    else
        {
        /* ensure that the base address we eventually generate is
         * non-negative
         */
        baseaddr = max( tblend + 1, minec );
        }

    tblbase = baseaddr - minec;
    tbllast = tblbase + maxec;

    if ( tbllast >= current_max_xpairs )
        expand_nxt_chk();

    base[statenum] = tblbase;
    def[statenum] = deflink;

    for ( i = minec; i <= maxec; ++i )
        if ( state[i] != SAME_TRANS )
            if ( state[i] != 0 || deflink != JAMSTATE )
                {
                nxt[tblbase + i] = state[i];
                chk[tblbase + i] = statenum;
                }

    if ( baseaddr == firstfree )
        /* find next free slot in tables */
        for ( ++firstfree; chk[firstfree] != 0; ++firstfree )
            ;

    tblend = max( tblend, tbllast );
    }

void mkprot	(	int	[],
		int	,
		int
	)

void mkprot	(	int *	state,
		int	statenum,
		int	comstate
	)

Definition at line 678 of file tblcmp.c.

{
    int i, slot, tblbase;

    if ( ++numprots >= MSP || numecs * numprots >= PROT_SAVE_SIZE )
        {
        /* gotta make room for the new proto by dropping last entry in
         * the queue
         */
        slot = lastprot;
        lastprot = protprev[lastprot];
        protnext[lastprot] = NIL;
        }

    else
        slot = numprots;

    protnext[slot] = firstprot;

    if ( firstprot != NIL )
        protprev[firstprot] = slot;

    firstprot = slot;
    prottbl[slot] = statenum;
    protcomst[slot] = comstate;

    /* copy state into save area so it can be compared with rapidly */
    tblbase = numecs * (slot - 1);

    for ( i = 1; i <= numecs; ++i )
        protsave[tblbase + i] = state[i];
    }

void mktemplate	(	int	[],
		int	,
		int
	)

void mktemplate	(	int *	state,
		int	statenum,
		int	comstate
	)

Definition at line 720 of file tblcmp.c.

{
    int i, numdiff, tmpbase, tmp[CSIZE + 1];
    Char transset[CSIZE + 1];
    int tsptr;

    ++numtemps;

    tsptr = 0;

    /* calculate where we will temporarily store the transition table
     * of the template in the tnxt[] array.  The final transition table
     * gets created by cmptmps()
     */

    tmpbase = numtemps * numecs;

    if ( tmpbase + numecs >= current_max_template_xpairs )
        {
        current_max_template_xpairs += MAX_TEMPLATE_XPAIRS_INCREMENT;

        ++num_reallocs;

        tnxt = reallocate_integer_array( tnxt, current_max_template_xpairs );
        }

    for ( i = 1; i <= numecs; ++i )
        if ( state[i] == 0 )
            tnxt[tmpbase + i] = 0;
        else
            {
            transset[tsptr++] = i;
            tnxt[tmpbase + i] = comstate;
            }

    if ( usemecs )
        mkeccl( transset, tsptr, tecfwd, tecbck, numecs, 0 );

    mkprot( tnxt + tmpbase, -numtemps, comstate );

    /* we rely on the fact that mkprot adds things to the beginning
     * of the proto queue
     */

    numdiff = tbldiff( state, firstprot, tmp );
    mkentry( tmp, numecs, statenum, -numtemps, numdiff );
    }

void mv2front

(

int

qelm

)

Definition at line 776 of file tblcmp.c.

{
    if ( firstprot != qelm )
        {
        if ( qelm == lastprot )
            lastprot = protprev[lastprot];

        protnext[protprev[qelm]] = protnext[qelm];

        if ( protnext[qelm] != NIL )
            protprev[protnext[qelm]] = protprev[qelm];

        protprev[qelm] = NIL;
        protnext[qelm] = firstprot;
        protprev[firstprot] = qelm;
        firstprot = qelm;
        }
    }

void place_state	(	int *	state,
		int	statenum,
		int	transnum
	)

Definition at line 807 of file tblcmp.c.

{
    int i;
    int *state_ptr;
    int position = find_table_space( state, transnum );

    /* base is the table of start positions */
    base[statenum] = position;

    /* put in action number marker; this non-zero number makes sure that
     * find_table_space() knows that this position in chk/nxt is taken
     * and should not be used for another accepting number in another state
     */
    chk[position - 1] = 1;

    /* put in end-of-buffer marker; this is for the same purposes as above */
    chk[position] = 1;

    /* place the state into chk and nxt */
    state_ptr = &state[1];

    for ( i = 1; i <= numecs; ++i, ++state_ptr )
        if ( *state_ptr != 0 )
            {
            chk[position + i] = i;
            nxt[position + i] = *state_ptr;
            }

    if ( position + numecs > tblend )
        tblend = position + numecs;
    }

void stack1	(	int	statenum,
		int	sym,
		int	nextstate,
		int	deflink
	)

Definition at line 851 of file tblcmp.c.

{
    if ( onesp >= ONE_STACK_SIZE - 1 )
        mk1tbl( statenum, sym, nextstate, deflink );

    else
        {
        ++onesp;
        onestate[onesp] = statenum;
        onesym[onesp] = sym;
        onenext[onesp] = nextstate;
        onedef[onesp] = deflink;
        }
    }

int tbldiff	(	int	[],
		int	,
		int	[]
	)

int tbldiff	(	int *	state,
		int	pr,
		int *	ext
	)

Definition at line 885 of file tblcmp.c.

{
    int i, *sp = state, *ep = ext, *protp;
    int numdiff = 0;

    protp = &protsave[numecs * (pr - 1)];

    for ( i = numecs; i > 0; --i )
        {
        if ( *++protp == *++sp )
            *++ep = SAME_TRANS;
        else
            {
            *++ep = *sp;
            ++numdiff;
            }
        }

    return ( numdiff );
    }
