calc_link Struct Reference

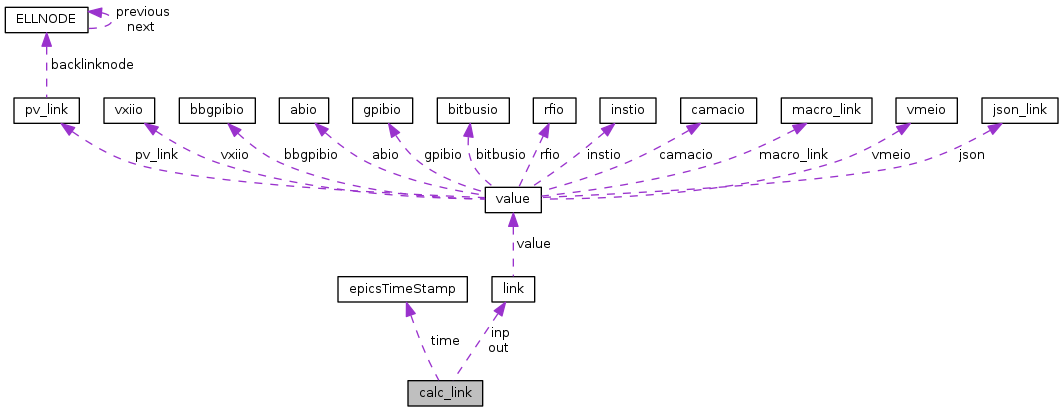

Collaboration diagram for calc_link:

Public Types
enum	{   ps_init, ps_expr, ps_major, ps_minor,   ps_args, ps_out, ps_prec, ps_units,   ps_time, ps_error }

Public Attributes
jlink	jlink
int	nArgs
short	dbfType
enum calc_link:: { ... }	pstate
epicsEnum16	stat
epicsEnum16	sevr
short	prec
char *	expr
char *	major
char *	minor
char *	post_expr
char *	post_major
char *	post_minor
char *	units
short	tinp
struct link	inp [CALCPERFORM_NARGS]
struct link	out
double	arg [CALCPERFORM_NARGS]
epicsTimeStamp	time
double	val

Detailed Description

Definition at line 40 of file lnkCalc.c.

Member Enumeration Documentation

anonymous enum

Enumerator
ps_init
ps_expr
ps_major
ps_minor
ps_args
ps_out
ps_prec
ps_units
ps_time
ps_error

Definition at line 44 of file lnkCalc.c.

         {
        ps_init,
        ps_expr, ps_major, ps_minor,
        ps_args, ps_out,
        ps_prec,
        ps_units,
        ps_time,
        ps_error
    } pstate;

Member Data Documentation

double calc_link::arg[CALCPERFORM_NARGS]

Definition at line 66 of file lnkCalc.c.

short calc_link::dbfType

Definition at line 43 of file lnkCalc.c.

char* calc_link::expr

Definition at line 56 of file lnkCalc.c.

struct link calc_link::inp[CALCPERFORM_NARGS]

Definition at line 64 of file lnkCalc.c.

jlink calc_link::jlink

Definition at line 41 of file lnkCalc.c.

char* calc_link::major

Definition at line 57 of file lnkCalc.c.

char* calc_link::minor

Definition at line 58 of file lnkCalc.c.

int calc_link::nArgs

Definition at line 42 of file lnkCalc.c.

struct link calc_link::out

Definition at line 65 of file lnkCalc.c.

char* calc_link::post_expr

Definition at line 59 of file lnkCalc.c.

char* calc_link::post_major

Definition at line 60 of file lnkCalc.c.

char* calc_link::post_minor

Definition at line 61 of file lnkCalc.c.

short calc_link::prec

Definition at line 55 of file lnkCalc.c.

enum { ... } calc_link::pstate

epicsEnum16 calc_link::sevr

Definition at line 54 of file lnkCalc.c.

epicsEnum16 calc_link::stat

Definition at line 53 of file lnkCalc.c.

epicsTimeStamp calc_link::time

Definition at line 67 of file lnkCalc.c.

short calc_link::tinp

Definition at line 63 of file lnkCalc.c.

char* calc_link::units

Definition at line 62 of file lnkCalc.c.

double calc_link::val

Definition at line 68 of file lnkCalc.c.

---

The documentation for this struct was generated from the following file:

• modules/database/src/std/link/lnkCalc.c
